EC86

Sensibly equivalent to:
6CM4

Extras ▼

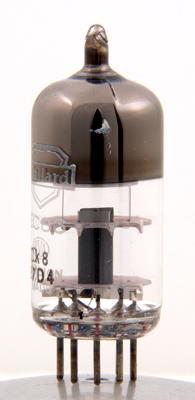

The EC86 was designed for use as a grounded grid amplifier, oscillator or mixer for UHF television receiver front ends between 430 and 860 MHz.
The anode seen side on. These UHF triodes achieved good noise performance by operating at a significant anode current and consequently needed to be able to dissipate some heat.
The thin glass tube envelope is 21 mm in diameter, and excluding the B9A base pins is 48 mm tall.
References: Data-sheet, 3002 & 1040. Type EC86 was first introduced in 1958. See also 1958 adverts.



Pin Connections
B9A
1
2
3
4
5
6
7
8
9
a
g1
k
h
h
g1
k
g1
a



Absolute Maximum Operating Conditions
Triode
Vh
Ah
Va
Vg
mAa
ra
gm
6.3
0.2
175
-1.75
12.0
4,850
14.0
Thanks to Frank Philipse for supplying the above PDF datasheet.
