HR210

Sensibly equivalent to:
PM1HL

Extras ▼



The Tungsram HR210 is a battery triode and is equivalent to the Mullard PM1HL etc. These very popular valves were used as detectors.

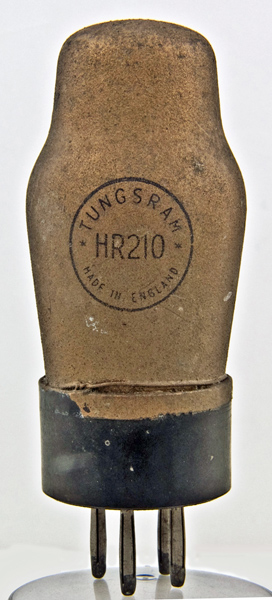

HR210 has a balloon envelope and HR210 has the classic shape but no metallic paint..
The classic envelope is 40 mm in diameter, and excluding the B4 base pins is 84 mm tall.
References: Datasheet & 1043. Type HR210 was first introduced in 1933.



Pin Connections
B4
1
2
3
4
a
g1
f
f



Absolute Maximum Operating Conditions
Triode
Vh
Ah
Va
Vg
mAa
ra
gm
2.0
0.1
135
-1.5
2.2
21,500
1.4
PDF scanned from an original document held by the museum
Updated February 09, 2013.
shape:classic construction:pinch type:triode age:1930.1940 base:b4 heater:2.0v pins:4 pin:1.a pin:2.g1 pin:3.f pin:4.f
