DV-2


See also:
DV and DL valves - Isolantite

Extras ▼

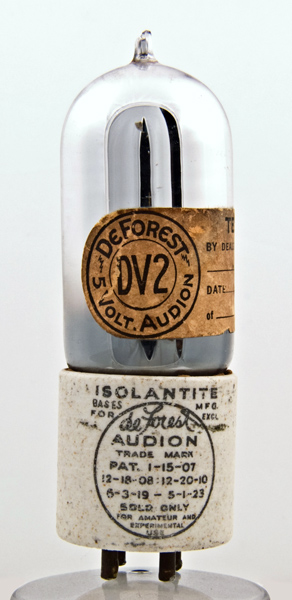

The De Forest DV-2 is an early triode with an amplification factor (μ) of about eight. We believe the introduction of the DV-2 was about 1923 and the version with the Isolantite base from 1924. The longer label seen on this exhibit dates from 1925.

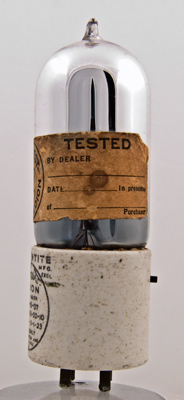

The paper label is for recording test details.
The four short pins in the Isolantite base.
See also DV-5.
The wide glass tube envelope is 32 mm in diameter, and excluding the UV base pins is 100 mm tall.
Reference: Bill Condon & 3002. Type DV-2 was first introduced in 1923.



Pin Connections
UV
1
2
3
4
f
a
g1
f



Absolute Maximum Operating Conditions
Triode
Vh
Ah
μ
5.0
0.25
8
Updated September 20, 2020.
shape:wide.glass.tube construction:pinch type:triode age:1920.1930 base:uv heater:5.0v pins:4 pin:1.f pin:2.a pin:3.g1 pin:4.f
