The CV466 is a screened amplifier pentode for voltage amplification of low level signals. With a high mutual conductance it could operate with a wide bandwidth.
See Valve Amplifier for the CV466 in use.
The miniature valve is still constructed with end micas and Mullard had a special assembly section dedicated to the hand assembly of these tiny devices and the design dates from 1950.

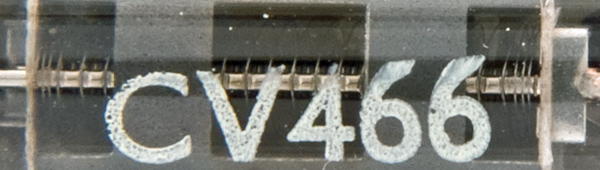

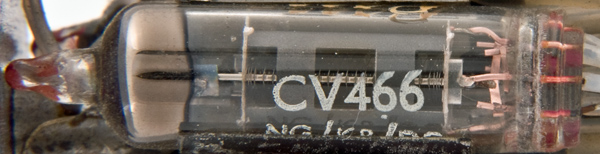

The grids can be seen through the envelope. The anode looks to be two active plates on either side of the cathode with straps at the edges where the grids are supported and little active electron flow is needed.

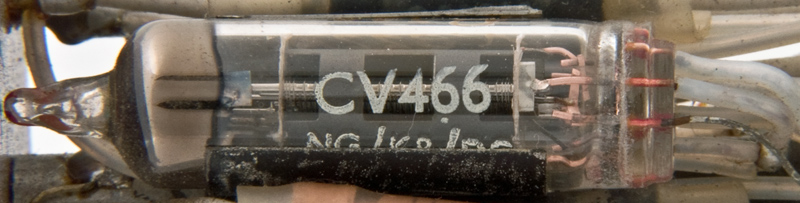

The thin glass tube envelope is 10 mm in diameter, and excluding the B8D base leads is 37 mm tall.
Reference: Data-sheet. Type CV466 was first introduced in 1950. See also 1950 adverts.



Pin Connections
B8D & B8D/F
1
2
3
4
5
6
7
8
g1
g3
h
a
g2
h
k
a



Absolute Maximum Operating Conditions
Pentode
Vh
Ah
Va
Vs
Vg
mAa
mAs
ra
gm
6.3
0.2
100
100
-2
7.5
2.5
0.25M
5.5
Thanks to Frank Philipse for supplying the above PDF datasheet.
