6J4WA

Sensibly equivalent^¶ to:

CV5029 M8232

Extras ▼

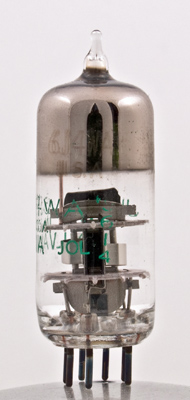

Sylvania G8LSD Valve Collection

The 6J4WA is a high frequency triode. It was designed for use as a grounded grid amplifier at up to 500 MHz. This would include Band IV television. The WA suffix indicates a special quality type.

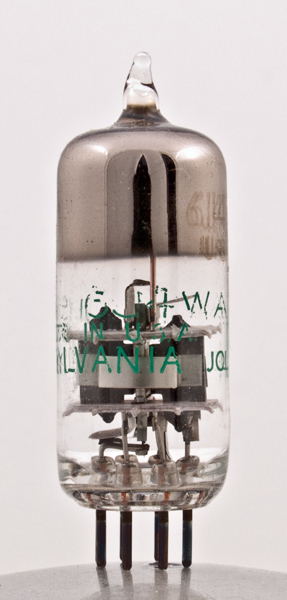

The anode is made up of two U shaped channels strapped together with a bright metal strap. The cathode is in the centre between them. The grid is wound closed spaced from fine wire. The grid extends beyond the anode.

The thin glass tube envelope is 17 mm in diameter, and excluding the B7G base pins, is 42 mm tall.

References: Data-sheet & ³⁰⁰². Type 6J4WA was first introduced in 1958. See also 1958 adverts.

Pin Connections

B7G	1	2	3	4	5	6	7
	g1	k	h	h	g1	g1	a

Absolute Maximum Operating Conditions^¶

Triode	Vh	Ah	Va	Vg	mAa	ra	gm	μ
	6.3	0.4	150	-1	20.0	-	12.0	55

Thanks to Frank Philipse for supplying the above PDF datasheet.

Updated February 08, 2013.
