6J6WA

Sensibly equivalent to:
CV4031

Extras ▼



The 6J6WA is a special quality version of the 6J6 double triode. The 6J6WA was developed for industrial and military applications.
The construction has a common flattened tube cathode, with the control grids either side. The anodes are U channel sections either side of the central cathode.

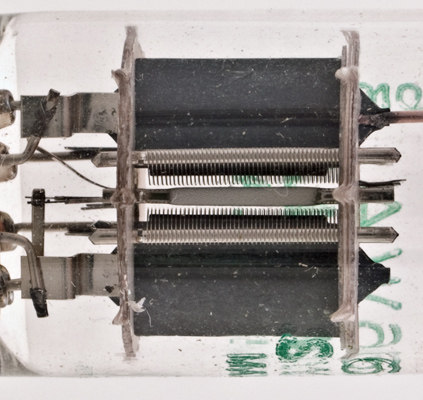

The common coated cathode is in the centre with the grids above and below. At top and bottom of the image are the anodes.

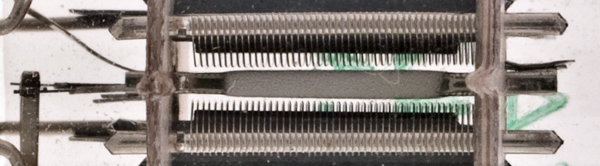

The central portion of the electrodes.

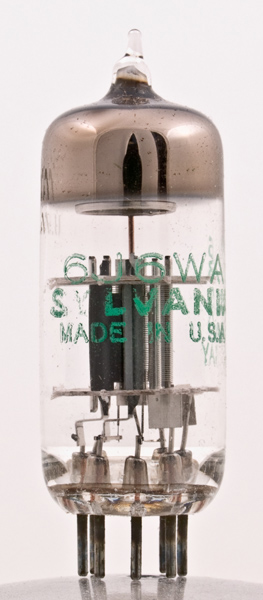

The thin glass tube envelope is 18 mm diameter and 44 mm high excluding the B7G base pins.
Reference: Data-sheet. Type 6J6WA was first introduced in 1963. See also 1963 adverts.



Pin Connections
B7G
1
2
3
4
5
6
7
a(2)
a(1)
h
h
g(1)
g(2)
k



Absolute Maximum Operating Conditions
Triode
Vh
Ah
Va
Vg
mAa
ra
gm
6.3
0.45
100
-0.85
8.5
7100
5.3
Thanks to Frank Philipse for supplying the above PDF datasheet.
Updated February 08, 2013.
