6.F.32

Sensibly equivalent^¶ to:

5A/200D CV343 CV1116 VR116

See also:

6F32 Advert, December 1948

Extras ▼

Mazda G8LSD Valve Collection

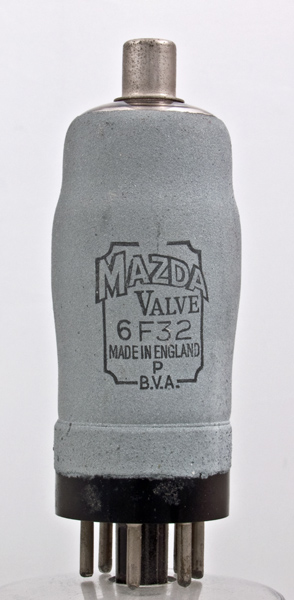

The 6.F.32 (6F32) is an RF pentode from 1948 and is for replacement purposes. The second issue 1956 data-sheet gives the design purpose as modulation and timing applications as well as stating that the valve is for replacement purposes.

The Mazda Octal base has the same diameter pin circle as the International Octal but the central spigot has a larger diameter.

The classic envelope is 32 mm in diameter, and excluding the IO base pins is 80 mm tall.

Reference: Data-sheet. Type 6.F.32 was first introduced in 1948. See also 1948 adverts.

Pin Connections

MO	1	2	3	4	5	6	7	8	tc
	h	k	a	g2	g3	m	nc	h	g1

Absolute Maximum Operating Conditions^¶

Pentode	Vh	Ah	Va	Vs	Vg	mAa	mAs	ra	gm	μ
	6.3	0.63	250	200	-4.5	5.1	3.45	-	3.0	38

Thanks to Frank Philipse for supplying the above PDF datasheet.
