CV1116

Sensibly equivalent to:
6F32M V872 VR116

Extras ▼



The CV1116 is an HF pentode. The prototype was the V872 and the commercial equivalent is the 6F32.

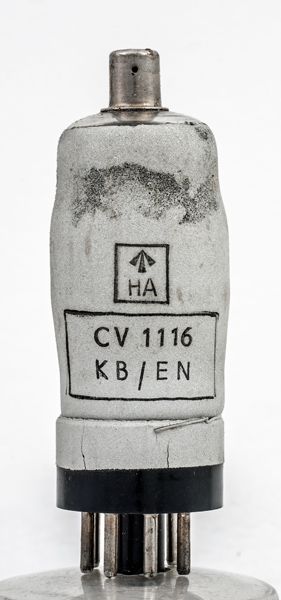

The KB/EN identifies this valve as being made to specification K1001 or K1006, the B denotes qualification by a UK authority and the EN identifies the maker as Thorn-AEI, Sunderland.
The reverse is plain zinc paint.
The classic envelope is 32 mm in diameter and, excluding the MO base pins, is 80 mm tall.
Reference: Data-sheet. Type CV1116 was first introduced in 1948. See also 1948 adverts.



Pin Connections
MO
1
2
3
4
5
6
7
8
tc
h
k
a
g2
g3
m
nc
h
g1



Absolute Maximum Operating Conditions
Pentode
Vh
Ah
Va
Vs
Vg
mAa
mAs
gm
6.3
0.63
200
200
-4.5
5.1
3.45
4.0
Thanks to Frank Philipse for supplying the above PDF datasheet.
Updated October 25, 2024.
