M8137

Sensibly equivalent to:
6057 CV4004 VX7059
See also:
Pin Compatible Double Triodes - Mullard Special Quality Valves - General Data

Extras ▼



The M8137 is a special quality version of the definitive audio double triode the ECC83. This high impedance amplifier triode was designed specifically for audio use and has a high amplification factor of 100.
This valve is still found in today's designs of hi-fi audio amplifiers. In the classic Mullard designs of the 1950s and 1960s the valve's two halves were used as second stage amplification and cathode coupled phase splitter. The phase splitter being required so that the push-pull output stage was driven correctly with the output valves driven with a phase difference of 180 degrees.

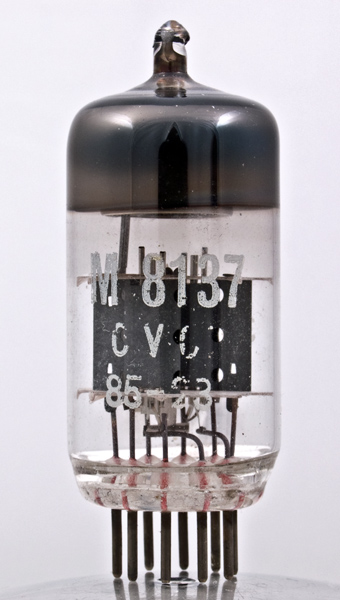

The construction is between top and bottom micas that are an interference fit to the glass tube envelope. The two triode tower sections are separated by a screen.

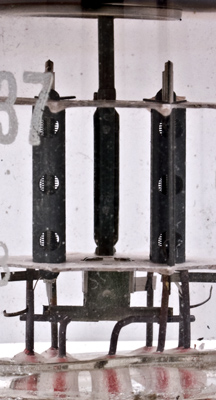

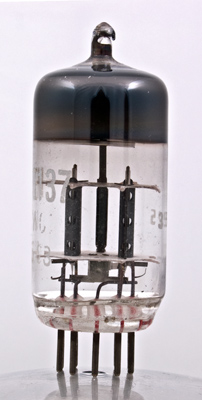

The triode sections seen end on to the grid support through the holes in the anode. Electrons do not need to be collected from the ends of the grid and the holes reduce the anode area in this region as well as allowing the hot grid to radiate heat away through the holes.

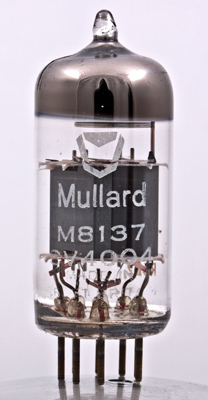

This exhibit carries the Mullard logo and identification. Also it is marked CV4004 thus showing the direct equivalence between the two designations.

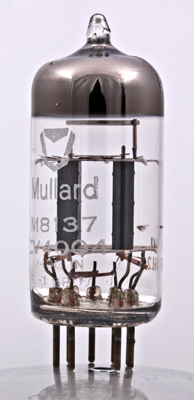

The anodes are opened on one side only.

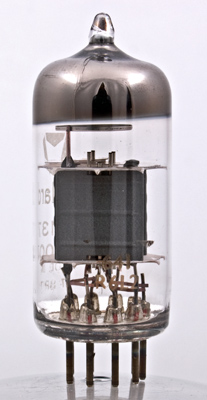

The anode flat on. The ridges add rigidity and the carbonising improves radiation efficiency as black is the most efficient radiator.

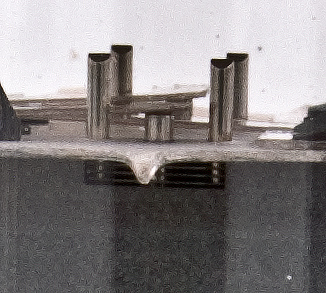

The central cathode and close spaced grid in one triode.

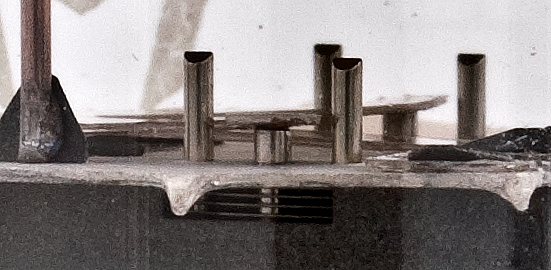

Another view of the grid. The wires pass very close to the central cathode tube.
The thin glass tube envelope is 21 mm in diameter and, excluding the B9A base pins, is 48 mm tall.
References: Datasheet & 1040.



Pin Connections
B9A
1
2
3
4
5
6
7
8
9
a(2)
g1(2)
k(2)
h
h
a(1)
g1(1)
k(1)
hct



Absolute Maximum Operating Conditions
Triode
Vh
Ah
Va
Vg
mAa
ra
gm
6.3
0.3
250
-2
1.2
62.5k
1.6
PDF scanned from an original document held by the museum
Updated March 29, 2013.
