CV18

Sensibly equivalent to:
2C34 4074A DET19 RK34

Extras ▼

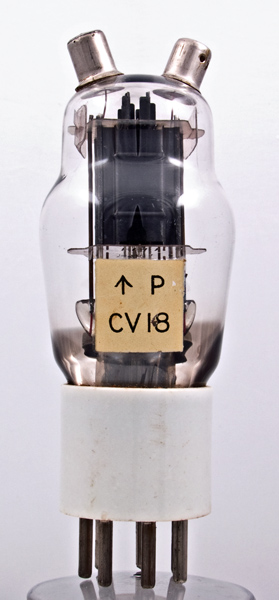

The CV18 is a low power VHF transmitting double triode that would have been used in push pull with a common tuned anode coil connected across the twin top caps. The HT would be fed into the tank circuit centre tap. The base is ceramic for better resistance to heat. Commercial versions are typified by the DET19 from M-OV.
The classic envelope is 45 mm in diameter and, excluding the UX7 base pins, is 108 mm tall.
References: Datasheet



Pin Connections
UX7
1
2
3
4
5
6
7
tc
tc
h
-
g1(1)
k
g1(2)
-
h
a(1)
a(2)



Absolute Maximum Operating Conditions
Triode
Vh
Ah
Va
Vg
mAa
ra
gm
μ
Pdriv
Pdiss
Pout
freq
f.max
6.3
0.8
300
-50
90
5,000
2.8
14
1W
10W
15W
100MHz
300MHz
Thanks to Frank Philipse for supplying the above PDF datasheet.
