90CV

Sensibly equivalent to:
CMV29 CV2134 VS50

Extras ▼

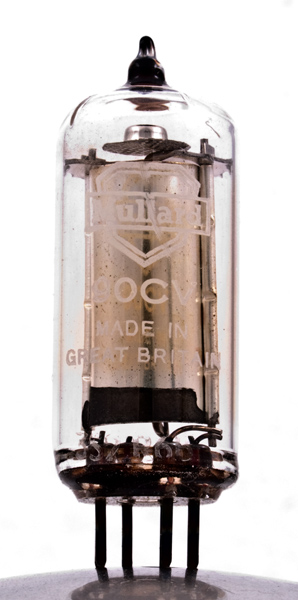

The 90CV is a caesium photo voltaic cell. It is sensitive to red and infra-red light. The cathode area as seen face on is 2.4 cm².
The cathode is a curved surface and the anode is a vertical rod.
The active electrodes seen face on. Pin 4 is directly below the anode and the base should be positioned with this pin pointing to the incident light.
The side window envelope is 18 mm in diameter, and excluding the B7G base pins is 45 mm tall.
Reference: Datasheet. Type 90CV was first introduced in 1955.



Pin Connections
B7G
1
2
3
4
5
6
7
ic
k
ic
a
ic
k
ic



Absolute Maximum Operating Conditions
Photocell
Vh
Ah
Va
-
-
250
Thanks to Frank Philipse for supplying the above PDF datasheet.
Updated February 14, 2013.
