CV2134

Sensibly equivalent to:
90CV VS50

Extras ▼



The CV2134 is the UK government procurement code for the commercial 90CV caesium photo voltaic cell. It is sensitive to red and infra-red light.
The cathode area as seen face on is 2.4 cm².

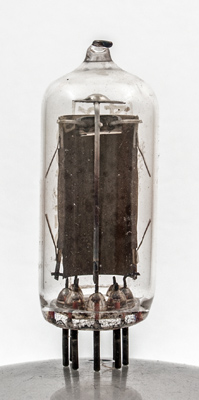

This image shows the semi-cylindrical photo-cathode.

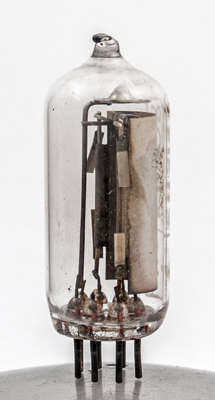

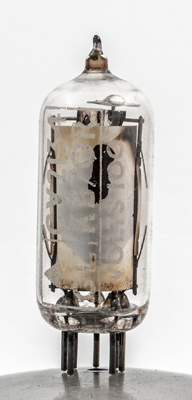

Another example.
The side window envelope is 18 mm in diameter, and excluding the B7G base pins is 44 mm tall.
Reference: Data-sheet.



Pin Connections
B7G
1
2
3
4
5
6
7
ic
k
ic
a
ic
k
ic



Absolute Maximum Operating Conditions
Light Control
Va
250
Thanks to Frank Philipse for supplying the above PDF datasheet.
Updated October 20, 2014.
shape:side.window construction:all.glass type:photocell age:1950.1960 base:b7g pins:7 pin:1.ic pin:2.k pin:3.ic pin:4.a pin:5.ic pin:6.k pin:7.ic
