15E

Sensibly equivalent to:
3-15A3 4C30 8033 CV933
See also:
227A VT-127A 327A 327B 53A 527 15R & 15E Advert

Extras ▼



The 15E is a miniature UHF power triode designed by Eimac (the Eitel-McCullough company of San Bruno California USA) in 1940 for use as an oscillator in the first American airborne radar, the ASB search radar. The matching rectifier is the 15R. Both types feature a directly heated thoriated tungsten filament. The 15E operated at 5.5 Volts.
Both devices are high voltage types designed for low duty cycle pulse operation at up to 600 MHz. The maximum anode dissipation is given as 20 Watts
The 15E was designed for a maximum anode voltage of 15,000 Volts when used as a pulse modulator or 12,500 Volts when used in RF service. In both cases the maximum grid voltage was 10,000 Volts.
The ASB-1 transmitter operated with with two EIMAC 15E triodes operating as a blocking oscillator at 515 MHz. Pulses of 2μS duration were generated at a repetition rate of 400 Hz. The peak pulse power was 5 kW but the average RF power was 4 Watts. The energy of each pulse was 0.01 Joules.
The later ASB-3 employed four 15E triodes also in a self quenched oscillator (blocking oscillator) to produce 10 kW pulses.
The final type ABS-7 used six 15E's in a ring oscillator circuit. The valves had to be closely matched for this circuit.
See also the PDF file attached to exhibit 1S/3iII.

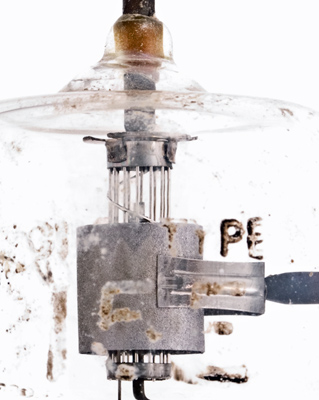

The cage grid has a helical support wire.

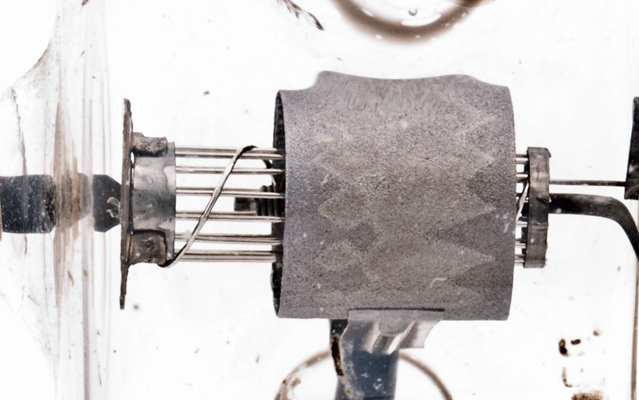

The anode is shorter than the grid cage. The filament connections can be seen on the right.

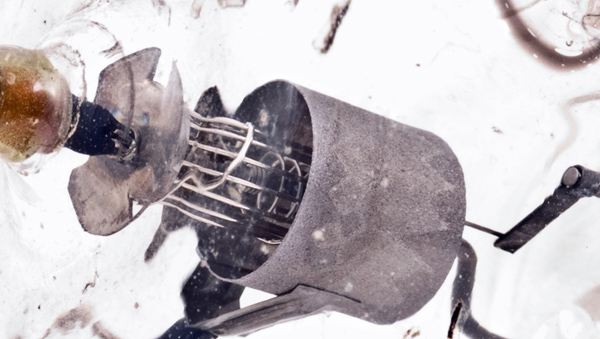

The thoriated tungsten filament is a helix. the thick support passes up to the level of the anode top and the filament lower end connects to a metal strip that is folded to anchor the wire. The filament wire is thick and the current is several amps. At the peak of a pulse the maximum current can reach 20 Amps.

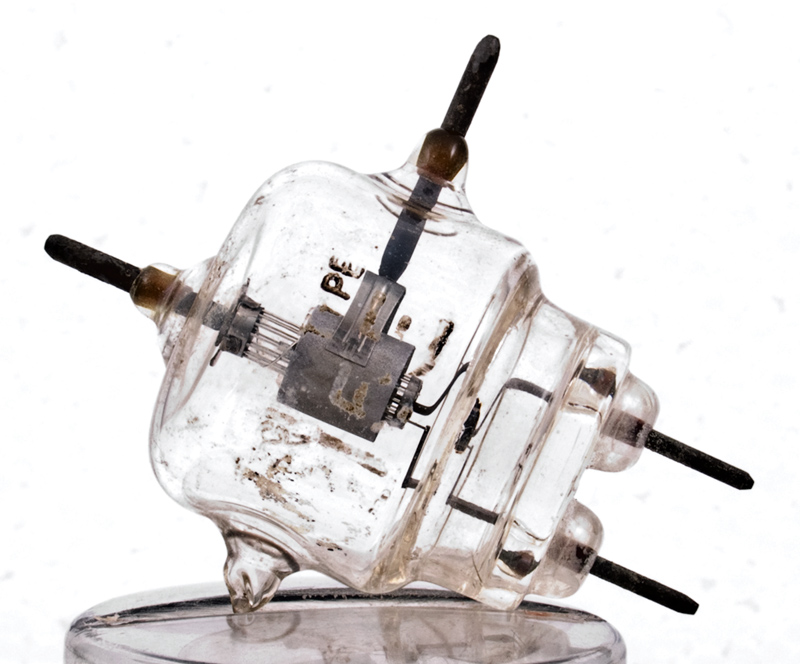

The wide glass tube envelope is 35 mm in diameter, and excluding the base pins is 58 mm tall.
References: 3002 & Internet. Type 15E was first introduced in 1940. See also 1940 adverts.



Absolute Maximum Operating Conditions
Triode
Vh
Ah
5.0
4.0
