CV4504

Sensibly equivalent to:
2S/141G 7435 CV469 VX7126 VX8123

Extras ▼



The CV4504 is an ultra miniature indirectly heated diode and a variant on the commercial EA76. These rugged diodes were originally developed for guided missile electronics. The prototypes listed in the CV specification are:- CV469, VX7126 & VX8123.

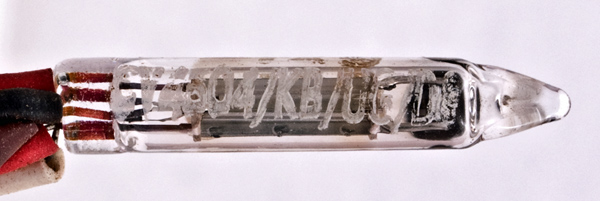

The Type designation.

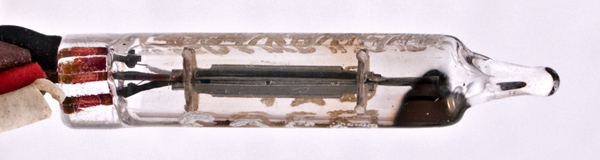

Side elevation showing the front to back thickness.

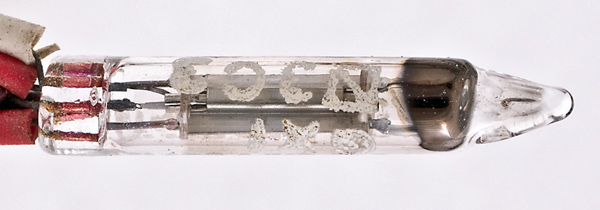

The reverse side showing the anode shaping.

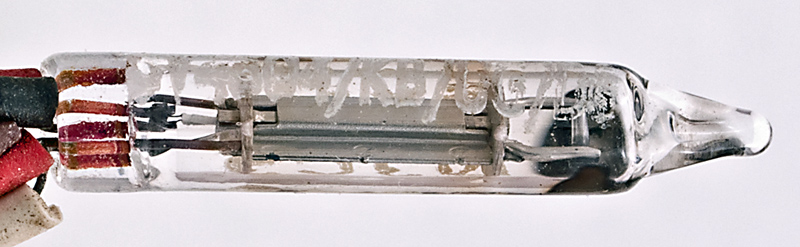

The thin glass tube envelope is 5 mm in diameter and, excluding the base wires is 27 mm tall.
Reference: Data-sheet. Type CV4504 was first introduced in 1962.



Absolute Maximum Operating Conditions
Diode
Vh
Ah
Va
mAa
6.3
0.15
150
9.0
Thanks to Frank Philipse for supplying the above PDF datasheet.
Updated October 16, 2013.
shape:thin.glass.tube construction:all.glass type:diode age:1950.1960 base: heater:6.3v pins:5 pin:
