CV469

Sensibly equivalent to:
CV4504 EA76 VX8062

Extras ▼

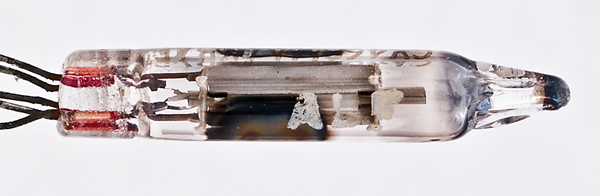

The CV469 was based on the VX8062 and is an ultra miniature diode with an indirectly heated cathode. The bright anode is 9 mm long including the supporting ceramic insulators. The commercial EA76 was introduced in 1953.
We have a small bag full of these diodes from an eBay auction.
This type of miniature valve was hand made by specialist operators - amazing.

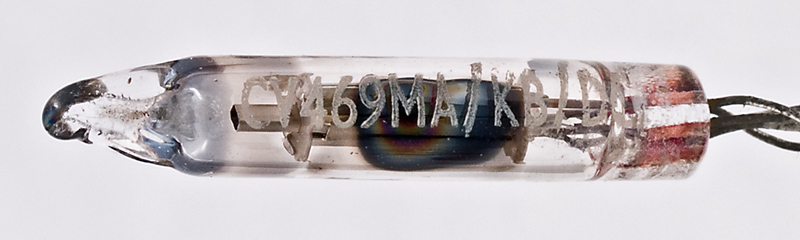

The thin glass tube envelope is 5 mm in diameter and, excluding the base wires is 26 mm tall.
References: Datasheet & 1040. Type CV469 was first introduced in 1953.



Pin Connections
B5B
1
2
3
4
5
h
a
k
h
a



Absolute Maximum Operating Conditions
Diode
Vh
Ah
Va
mAa
6.3
0.15
150
9.0
Thanks to Frank Philipse for supplying the above PDF datasheet.
Updated October 07, 2013.
shape:thin.glass.tube construction:all.glass type:diode age:1950.1960 base:b5b heater:6.3v pins:5 pin:1.h pin:2.a pin:3.k pin:4.h pin:5.a
