PM12M

Sensibly equivalent to:
218VSG 220VS CV1041 S215VM VR41 VS24 VS2 W21/4 W21

Extras ▼



The PM12M is an variable μ RF tetrode known at the time as a screened grid valve because the screen grid took the form of an enclosing cage.
The first screened grid valve was the S625. Soon the cage arrangement had replaced the double ended original M-OV design.
The top cap

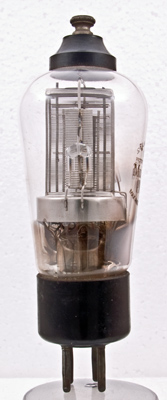

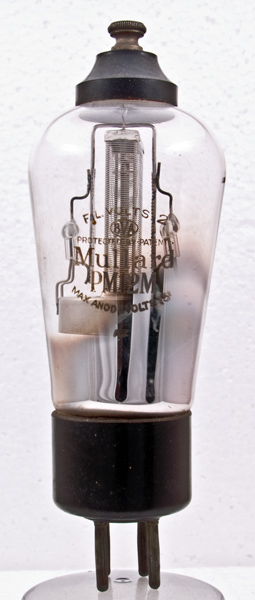

The complete valve. The screen begins above the pinch as a skirt and then the grid cage can be seen with the anode connection being taken to the screw top cap

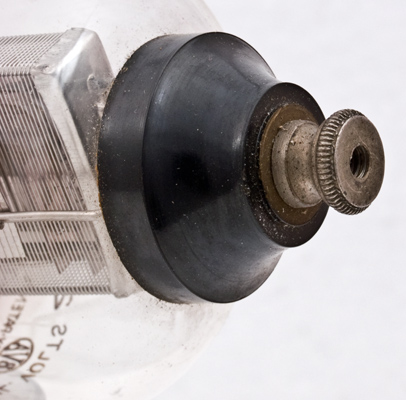

A closer look at the plastic moulding and the screw connection. If the adhesive fails the wire to the anode is easily broken. The screw top is not original, it should be an insert in a black plastic cap.

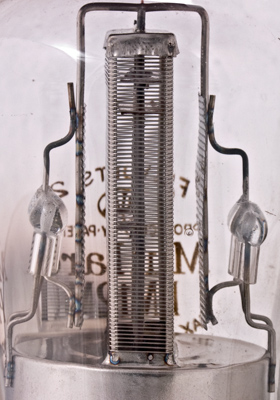

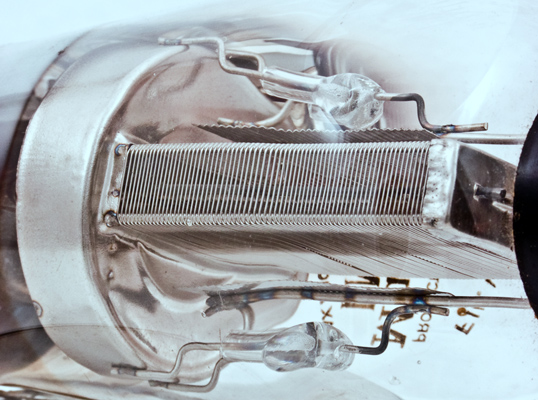

The screen cage with the twin corrugated anode sheets either side.

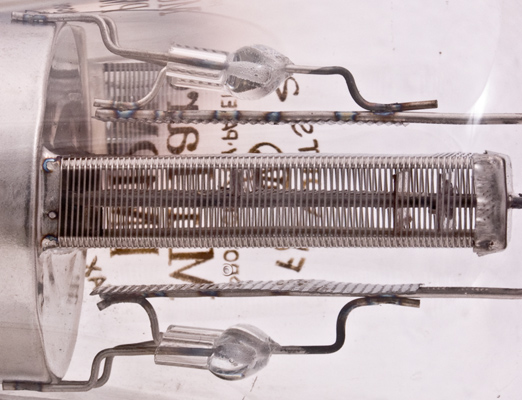

The horizontal separation of central filament and control grid to the screen grid cage and finally the anode sheets held rigid in glass insulators connected to the screen skirt.

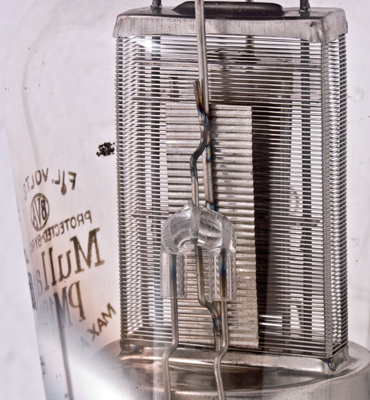

The glass beads holding the anode sheets. The inner surface of the lower anode can be seen.
The anode is just slightly narrower than the control grid. The screen is much wider.

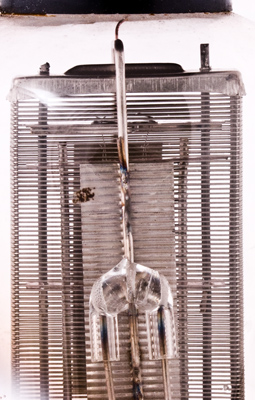

The glass bead can be seen to consist of the bead and two lengths of glass tube.

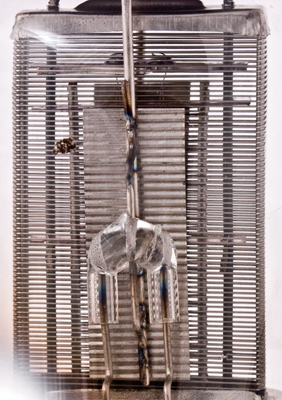

Here the twin hairpin filaments can be seen. The filaments are held in tension by two springs fitted to the top mica.
The balloon envelope is 49 mm in diameter, and excluding the B4 base pins is 121 mm tall.
References: Datasheet & 1043 Type PM12M was first introduced in 1933.



Pin Connections
B4
1
2
3
4
tc
g2
g1
f
f
a



Absolute Maximum Operating Conditions
Tetrode
Vh
Ah
Va
Vs
Vg
mAa
mAs
ra
gm
2.0
0.3
150
90
-0/7
2.5
0.5
0.23M
1.4
Thanks to Andy Cowley for supplying the above PDF datasheet.
Updated December13, 2013.
