PL300

Sensibly equivalent to:
35FN5 CV10783

Extras ▼

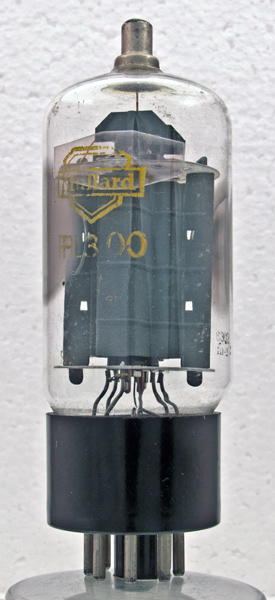

The PL300 is a television line output valve designed for use within a 300 mA series heater chain. The EL300 is electrically identical with the exception of the 6.3 Volt 1.65 Amp heater designed for parallel heater operation.

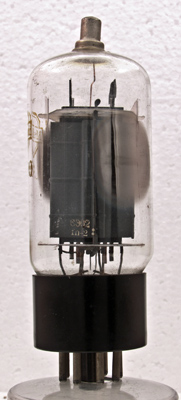

The valve has a substantial box anode.

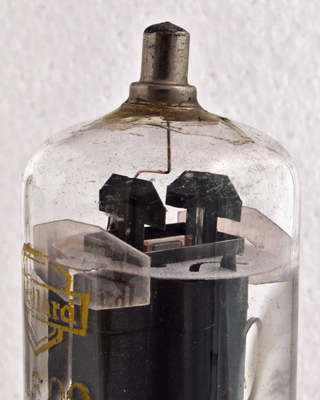

The screen grid has cooling fins above the top mica. The control grid is wound on copper support rods. The cathode tube is a flat rectangle. The low rectangular structure surrounding the inner grids is the beam forming plate.

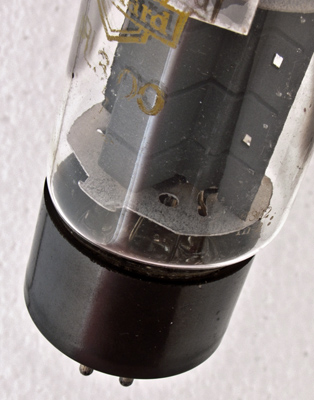

The valve is essentially an all glass type formed on a glass disc with wires connected to the IO base pins rather than directly to pins as a B9D type would be.
The wide glass tube envelope is 38 mm in diameter, and excluding the IO base pins is 101 mm tall.
References: data-sheet. Type PL300 was first introduced in 1968. See also 1968 adverts.



Pin Connections
IO
1
2
3
4
5
6
7
8
tc
g2
h
k,g3
g1
g1
k,g3
h
g2
a



Absolute Maximum Operating Conditions
Beam Tetrode
Vh
Ah
Va
35.0
0.3
275
Thanks to Frank Philipse for supplying the above PDF datasheet.
Updated February 21, 2014.
