VT-114

Sensibly equivalent to:
5T4

Extras ▼



The VT-114 (5T4) rectifier is described by RCA as a high voltage full wave rectifier. It would be used for all types of medium power equipment.
The VT-114 was probably introduced in the mid 1930's as part of the metal valve range.

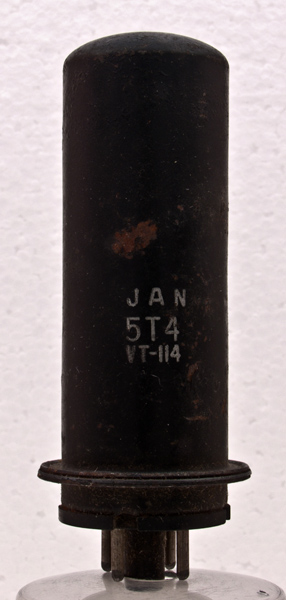

The printed identification on the painted steel envelope.
The wide metal tube envelope is 30 mm in diameter and, excluding the IO base pins, is 91 mm tall.
References: Data-sheet, 1043 & 3002. Type VT-114 was first introduced in 1937.



Pin Connections
IO
2
4
6
8
f
a(2)
a(1)
f



Absolute Maximum Operating Conditions
Rectifier
Vh
Ah
Va
mAa
5.0
2.0
450
225
Thanks to Frank Philipse for supplying the above PDF datasheet.
Updated May 07, 2019.
shape:classic construction:pinch type:rectifier.fw age:1930.1940 base:io heater:5.0v pins:8 pin:2.f pin:4.a pin:6.a pin:8.f
