QP21

Sensibly equivalent to:
CV1035 VR35
See also:
Quiescent Push-Pull - Some Important British Valves - Acoustic Aberration - Applications of the new valves 1935 - Valves at Olympia 1934 - New Valves for Old Receivers

Extras ▼



The QP21 is directly heated and for battery HT sets. The pair of pentodes were designed to operate in Class B1 and so draw very little standing current. An important fact when the cost of HT batteries was significant. The screen grid is also common to both sections.
The output power was of the order of 0.5 Watt and the anode to anode load was quoted at 25,000 Ohms.

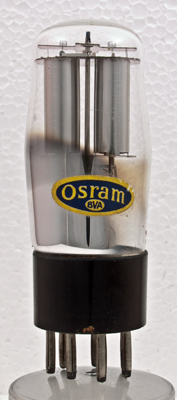

The Osram brand label. The central rods are connected to the anodes at the top as the small space between the suppressor grid and the anode would make connecting at the lower end difficult.

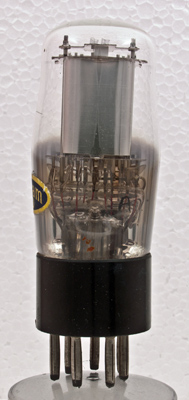

An anode face view.

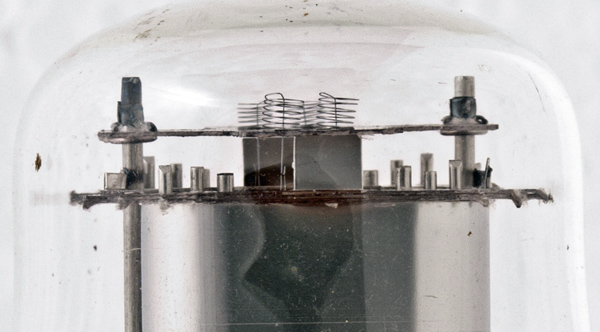

The top mica components: filament tension springs, anode connections and grid spacing.

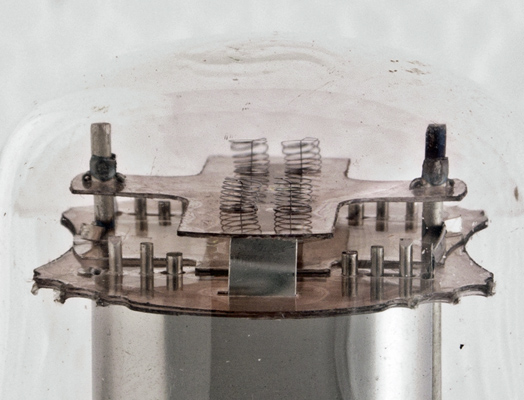

A view across both pentode sections.

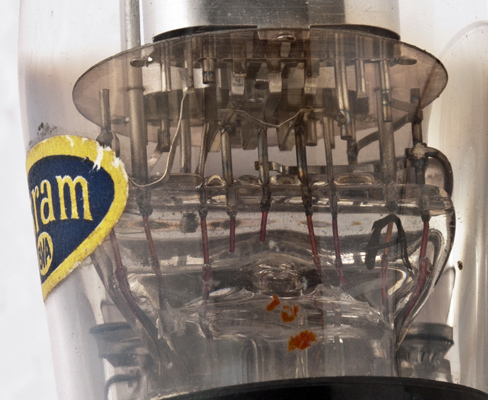

A view of the pinch and welded tape connections between pinch struts and valve electrodes.

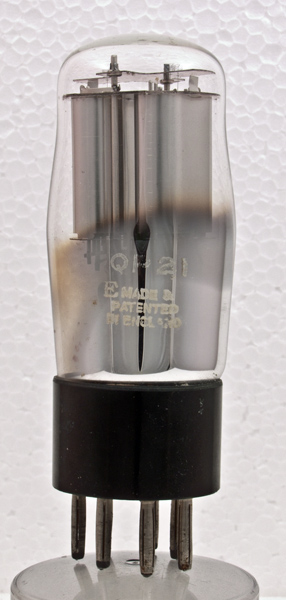

The classic envelope is 39 mm in diameter, and excluding the B7 base pins, is 94 mm tall.
References: Data-sheet & 1043. Type QP21 was first introduced in 1934. See also 1934 adverts.



Pin Connections
B7
1
2
3
4
5
6
7
g1(1)
g1(2)
a(2)
f,g3
f
g2
a(1)



Absolute Maximum Operating Conditions
Pentode
Vh
Ah
Va
Vs
Vg
mAa
mAs
2.0
0.4
150
120
-4.5
5.6
1.4
Thanks to Frank Philipse for supplying the above PDF datasheet.
Updated May 09, 2023.
