EC97

Sensibly equivalent to:
6FY5

Extras ▼



The EC97 was designed for use as an RF amplifier in VHF television tuners. This valve has a 6.3 Volt heater for parallel supply and this valve was most likely used in applications where a fully isolated chassis was employed and a mains transformer was fitted. For domestic equipment the 300 mA series heater version the PC97 was more appropriate.

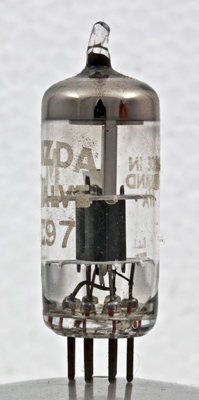

The anode from the side.

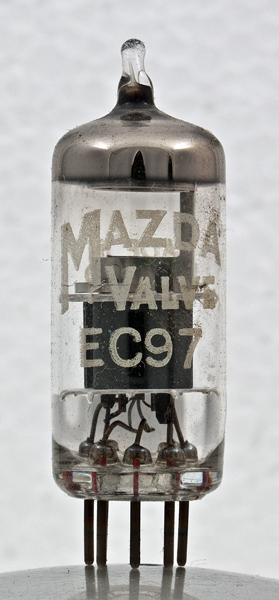

The anode face view.

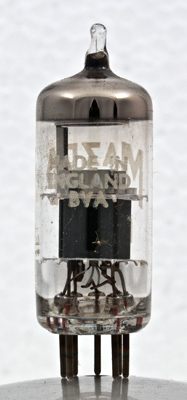

The thin glass tube envelope is 18 mm in diameter, and excluding the B7G base pins is 47 mm tall.
References: Datasheet & 1040. Type EC97 was first introduced in 1962.



Pin Connections
B7G
1
2
3
4
5
6
7
k
g1
h
h
a
s
k



Absolute Maximum Operating Conditions
Triode
Vh
Ah
Va
Vg
mAa
ra
gm
6.3
0.215
135
-1
11.0
5,000
13.0
Updated September 07, 2013.
