6V6GTY

Sensibly equivalent to:
6V6GT-STR 7408
See also:
The GTY Suffix - Beam Tetrodes and the 807

Extras ▼



The 6V6 family of beam tetrodes came in many constructions and were very popular as the final audio stage of broadcast receivers. The GTY suffix indicates a glass tubular bulb with a wood loaded phenolic resin base.
The GTY version would perform better in humid conditions - possibly in airborne applications.
The valves were capable of push pull use but the normal environment was as a single end output stage.

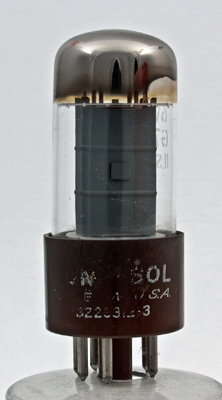

The Tung-Sol name and the anode seen with the grids in-line above the top mica. The electrodes are seen to be close to the base as a pressed foot is used in the construction. Our other 6V6GTY has conventional pinch construction.
The wide glass tube envelope is 28 mm in diameter and, excluding the IO base pins, is 69 mm tall.
References: Datasheet, 1040 & 1043.



Pin Connections
IO
1
2
3
4
5
6
7
8
m
h
a
g2
g1
nc
h
k



Absolute Maximum Operating Conditions
Beam Tetrode
Vh
Ah
Va
Vs
Vg
mAa
mAs
ra
gm
Pout
D
6.3
0.45
315
225
-13
34
2.2
77K
3.75
5.5W
12%
Thanks to Frank Philipse for supplying the above PDF datasheet.
Updated May 19, 2014.
