ECC88

Sensibly equivalent to:
6DJ8 CV5358 M3624
See also:
Siemens ECC88 Box

Extras ▼



The ECC88 is a VHF double triode with separate cathodes. The ECC88 was designed for service as a cascode amplifier in the front ends of VHF radio receivers. One triode acted as the local oscillator and the other as the mixer (frequency changer).

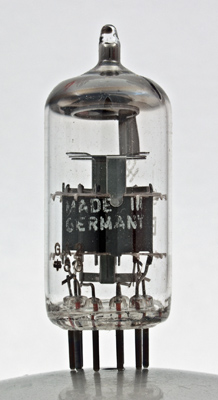

As one would expect this is a German made valve.
The anode is shaped so that the central section is close to the grid and the outer part is able to radiate away the heat generated in operation.
Below the lower mica is a shield.
The thin glass tube envelope is 20 mm in diameter and, excluding the B9A base pins, is 48 mm tall.
References: Datasheet & 1040. Type ECC88 was first introduced in 1958.



Pin Connections
B9A
1
2
3
4
5
6
7
8
9
a(2)
g1(2)
k(2)
h
h
a(1)
g1(1)
k(1)
s



Absolute Maximum Operating Conditions
Triode
Vh
Ah
Va
Vg
mAa
gm
6.3
0.365
90
-1.3
15.0
12.5
Thanks to Frank Philipse for supplying the above PDF datasheet.
Updated May 22, 2014.
