N329

Sensibly equivalent to:
16A5 N154 PL82
See also:
Valves and their Habits - Osram N329 Box - New Osram Valves Advert

Extras ▼



The N329 was designed for low frequency power output either as a television frame output valve or for audio use.
This valve would normally be found in the single ended audio stages of television receivers, but a pair used in push pull class AB1 would deliver 9 Watts at 4 % distortion. The peak to peak grid signal voltage would be 26 Volts and the shared anode load would be 4,000 Ohms.

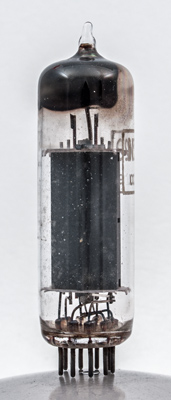

The working face of the anode with the three grid supports visible above to top mica. The control grid is wound on copper supports.

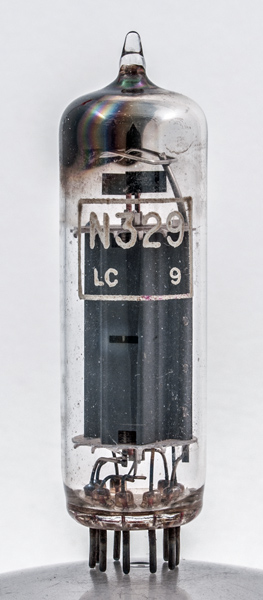

The thin glass tube envelope is 21 mm in diameter and, excluding the B9A base pins, is 69 mm tall.
References: Datasheet & 1040



Pin Connections
B9A
1
2
3
4
5
6
7
8
9
-
g1
k,g3
h
h
ic
a
ic
g2



Absolute Maximum Operating Conditions
Pentode
Vh
Ah
Va
Vs
Vg
mAa
mAs
ra
gm
Pout
D
16.5
0.3
170
170
-10.4
53
10
20,000
9.0
4W
10%
Thanks to Frank Philipse for supplying the above PDF datasheet.
Updated February 23, 2015.
