ZT1011

Sensibly equivalent to:
8063 CV5234 XR1-1600A

Extras ▼

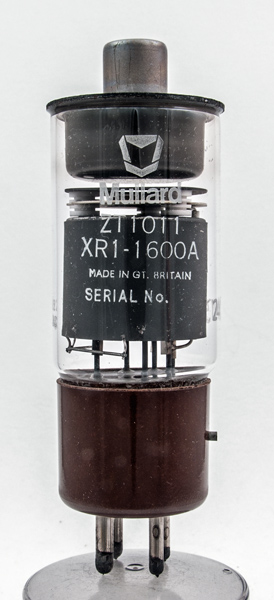

The ZT1011 or XR1-1600A is a triode Thyratron designed for industrial control applications. The peak current is 20 Amps.

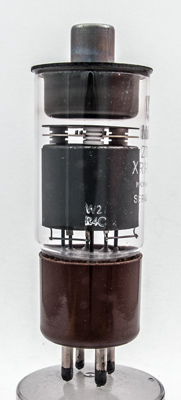

The UX4 base also has a locating pin for bayonet bases.
The internal electrodes are separated with ceramic insulators due to the high voltages involved.

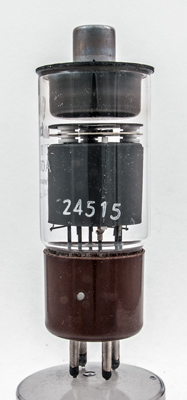

The serial number is 24515.
The top cap with re-entrant anode.
The wide glass tube envelope is 38 mm in diameter, and excluding the UX4 base pins is 102 mm tall.
Reference: Datasheet. Type ZT1011 was first introduced in 1961.



Pin Connections
UX4
1
2
3
4
tc
f
fct
g1
f
a



Absolute Maximum Operating Conditions
Thyratron
Vh
Ah
Va
mAa
2.5
9.5
1,500
1,600
Thanks to Frank Philipse for supplying the above PDF datasheet.
Updated July 29, 2015.
shape:wide.glass.tube construction:glass.foot type:thyratron age:1950.1960 base:ux4 heater:2.5v pins:4 pin:1.f pin:2.fct pin:3.g1 pin:4.f pin:tc.a
