P2018

Sensibly equivalent to:
B2006 REN1822

Extras ▼

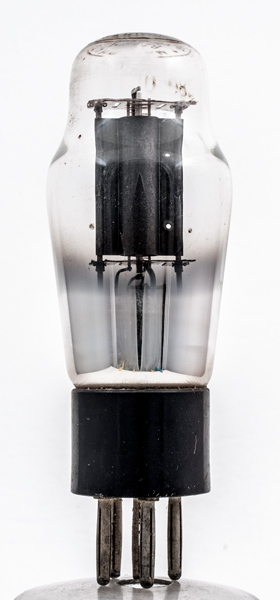

The P2018 is an audio power triode with a 20 Volt 0.18 Amp heater designed for series heater chains. It requires a load impedance of 6,000 Ω, a cathode resistor of 750 Ω and will deliver 900 mW of output.
We also have the R2018 in the museum. The two look identical, and share the same heater requirements, but the R version is a low power general purpose signal processor.

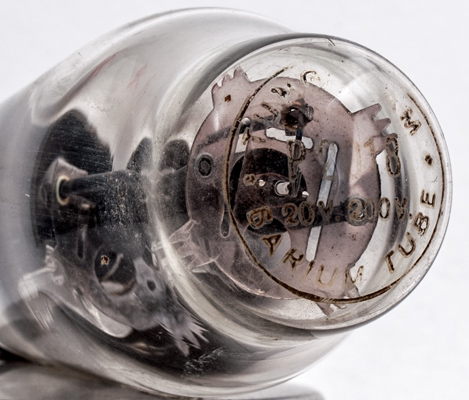

The dome carries all the identification. Barium tube is used as a branding device and does not refer to the older Azide process.

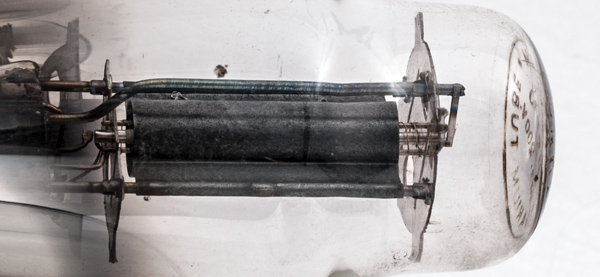

The construction looks to be identical to the R2018 and it is possible that under spec P2018s may have been the source of the R2018.

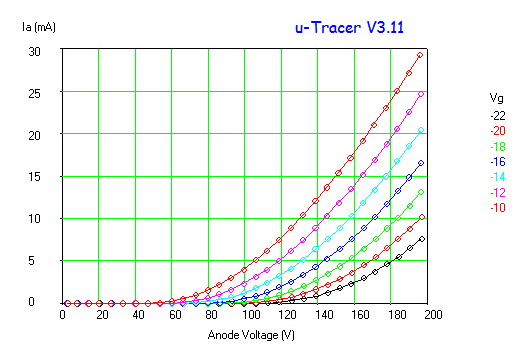

A μ-Tracer plot of the characteristic curves for this exhibit.
The classic envelope is  mm in diameter, and excluding the base pins is  mm tall.
Reference: 1043. Type P2018 was first introduced in 1934.



Pin Connections
B5
1
2
3
4
5
a
g1
h
h
k



Absolute Maximum Operating Conditions
Triode
Vh
Ah
Va
Vg
mAa
ra
gm
20.0
0.18
200
-18.0
25.0
2,800
2.5
Updated January 06, 2017.
shape:classic construction:pinch type:triode age:1930.1940 base:b5 pins:5 pin:1.a pin:2.g1 pin:3.h pin:4.h pin:5.k
