W63Sensibly equivalent¶ to:See also:
|
|
|

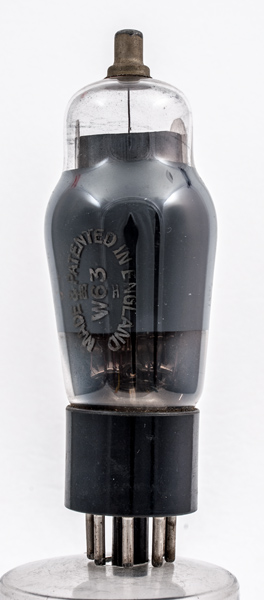

The W63 is a screened pentode and was designed for intermediate frequency amplifiers in superhet receivers. It is high impedance type allowing for a high Q in the tuned anode circuit. It is the M-OV implementation of the 6K7G design. The KTW63 superseded the W63.The M-OV etched ellipse with the Type designation within identifies the origin.![](../pics/aaa1681a.jpg)
The reverse is plain.The classic envelope is 38 mm in diameter and, excluding the IO base pins the valve is 104 mm tall.References: Data-sheet, 1040 & 1043. Type W63 was first introduced in 1937. See also 1937 adverts. |
Pin Connections
| 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | tc | ![](../static/key.gif) m | h | a | g2 | nc | g3 | h | k | g1 |
|
|
Absolute Maximum Operating Conditions¶
| Vh | Ah | Va | Vs | Vg | mAa | mAs | ra | gm | ![](../static/pdflogo.gif)
| 6.3 | 0.3 | 250 | 125 | -3 | 10.5 | 2.6 | 0.6M | 1.65 |
|
Updated February 23, 2023.
|
|
