5Z4P


See also:
6N8P and 6P3P Single Ended Stereo Amplifier

Extras ▼



This 5Z4P was supplied as part of an amplifier kit. The OTK on the base indicates that it is Russian in origin and made to military specifications.

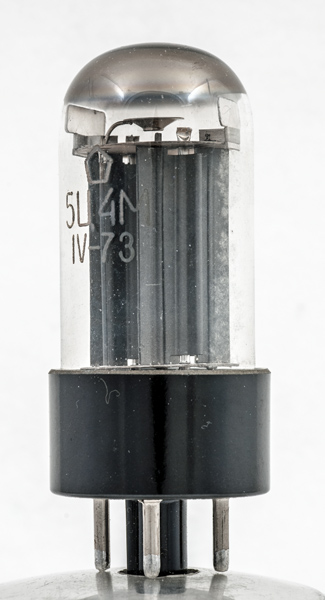

This rectifier was designed to supply equipment of up to 40 Watts total power.

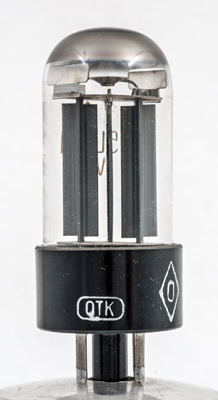

The twin rectifier sections.

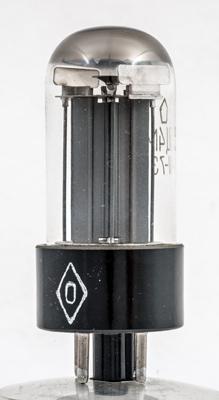

One rectifier section seen face on. The bright cathode tube is in the centre with heat radiating fins to either side.
The wide glass tube envelope is 28 mm in diameter and excluding the IO base pins, is 70 mm tall.
References: Datasheet, 1040 & 1043.



Pin Connections
IO
1
2
3
4
5
6
7
8
m
h
nc
a(2)
nc
a(1)
nc
h,k



Absolute Maximum Operating Conditions
Rectifier
Vh
Ah
Va
mAa
5.0
2.0
350
125
Thanks to Frank Philipse for supplying the above PDF datasheet.
Updated April 12, 2020.
shape:wide.glass.tube construction:glass.foot type:rectifier.fw age:1930.1940 base:io heater:5.0v pins:8 pin:1.m pin:2.h pin:3.nc pin:4.a(2) pin:5.nc pin:6.a(1) pin:7.nc pin:8.h.k
