6P14

Sensibly equivalent to:
EL84
See also:
6P14 Mini Amplifier

Extras ▼

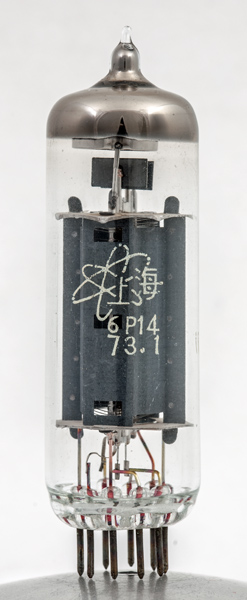

The 6P14 is a copy of the EL84 audio output pentode. This exhibit was part of the Chinese mini amplifier.

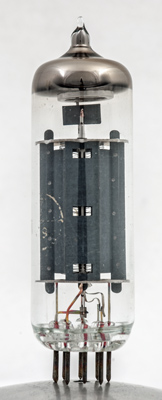

The pressed anode is joined at the centre of the working face and the flange aids heat dissipation.

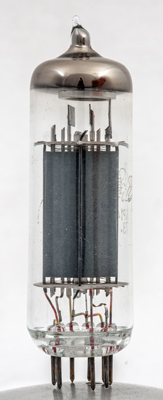

Looking through the holes in the side wall of the anode the three wire grids can be seen.
The thin glass tube envelope is 20 mm in diameter and, excluding the B9A base pins, is 70 mm tall.
Reference: Datasheet. Type 6P14 was first introduced in 1958.



Pin Connections
B9A
1
2
3
4
5
6
7
8
9
ic
g1
k,g3
h
h
ic
a
ic
g2



Absolute Maximum Operating Conditions
Pentode
Vh
Ah
Va
Vs
Vg
mAa
mAs
gm
Pout
Pdiss
6.3
0.76
250
250
-7.3
48
5.5
6.7
2.2
12W
Thanks to Frank Philipse for supplying the above PDF datasheet.
Updated May 01, 2020.
shape:thin.glass.tube construction:all.glass type:pentode age:1950.1960 base:b9a heater:6.3v pins:9 pin:1.ic pin:2.g1 pin:3.k.g3 pin:4.h pin:5.h pin:6.ic pin:7.a pin:8.ic pin:9.g2
