6P6P

Sensibly equivalent^¶ to:

6V6GT

See also:

6P6P Class AB1 Stereo Amplifier

Extras ▼

Shuguang G8LSD Valve Collection

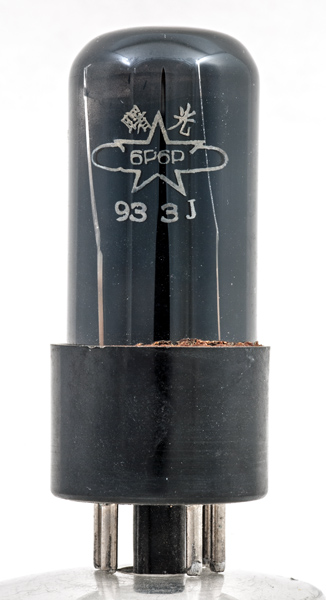

This is a Chinese military version of the classic 6V6GT beam tetrode and came as part of a matched pair with the 6P6P amplifier kit.

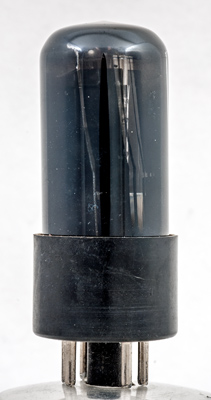

The dark internal coating obscures the internal structure.

The wide glass tube envelope is 27 mm in diameter, and excluding the IO base pins is 67 mm tall.

References: Data-sheet, ¹⁰⁴⁰ & ¹⁰⁴³. Type 6P6P was first introduced in 1937. See also 1937 adverts.

Pin Connections

IO	1	2	3	4	5	6	7	8
	m	h	a	g2	g1	nc	h	k

Absolute Maximum Operating Conditions^¶

Beam Tetrode	Vh	Ah	Va	Vs	Vg	mAa	mAs	ra	gm	Pout	D
	6.3	0.45	315	225	-13	30	2.2	52K	4.1	5.5W	12%

Thanks to Frank Philipse for supplying the above PDF datasheet.

Updated May 13, 2020.
