KTW61

Sensibly equivalent to:
KTW62 NR64 POVT193 W61
See also:
Osram KTW61 Advert

Extras ▼



The KTW61 is a variable μ RF amplifier beam tetrode, and was first introduced in 1939.

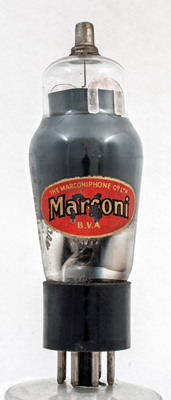

The Marconi brand label.

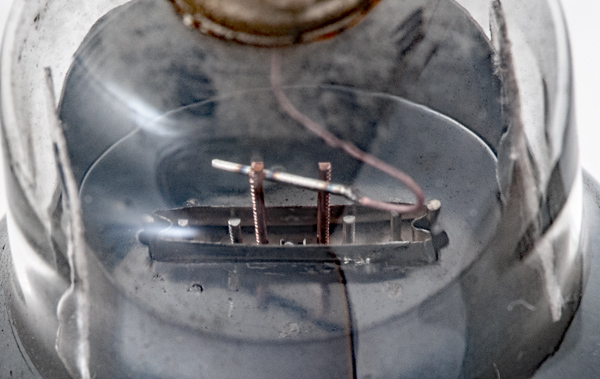

The copper rods of the control grid and the wire connection to the top cap.
Thanks to Anurag aggarwal for sending the Osram data-sheet.
The classic envelope is 38 mm in diameter and, excluding the IO base pins, is 107 mm tall.
References: Data-sheet, 1040 & 1043. Type KTW61 was first introduced in 1939.



Pin Connections
IO
1
2
3
4
5
6
7
8
tc
m
h
a
g2
g3
-
h
k
g1



Absolute Maximum Operating Conditions
Beam Tetrode
Vh
Ah
Va
Vs
Vg
mAa
mAs
ra
gm
6.3
0.3
250
100
-3
8.0
2.7
0.46M
2.9
PDF scanned from an original document held by the museum
Updated May 21, 2020.
shape:classic construction:pinch type:beam.tetrode age:1930.1940 base:io heater:6.3v pins:8 pin:1.m pin:2.h pin:3.a pin:4.g2 pin:5.g3 pin:6.- pin:7.h pin:8.k pin:tc.g1
