6AS6

Sensibly equivalent to:
409A 5725 6AS6W CV2522 CV4011

Extras ▼



The 6AS6 is a physically small amplifier pentode. It is designed for dual control and therefore the suppressor has a short grid base or control range.

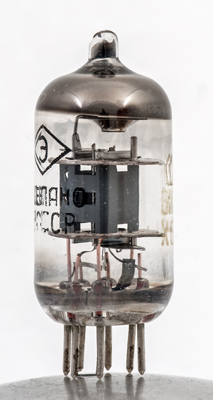

The end wall of the anode has notches so the suppressor grid support can be seen. As this is a dual control valve the suppressor grid has a much smaller pitch than a single control pentode.

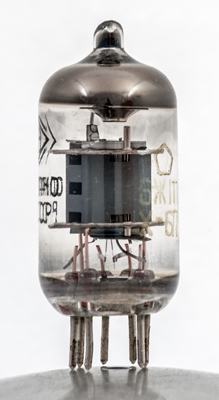

The Russian Type designation is 6Ж1П.

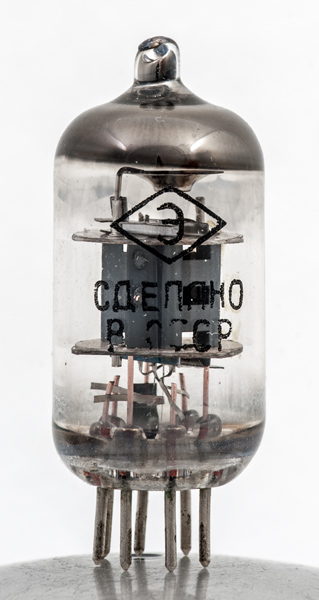

The pentagon logo.
The thin glass tube envelope is 18 mm in diameter and, excluding the B7G base pins, is 38 mm tall.
References: Data-sheet & 1040. Type 6AS6 was first introduced in 1949.



Pin Connections
B7G
1
2
3
4
5
6
7
g1
k
h
h
a
g2
g3



Absolute Maximum Operating Conditions
Pentode
Vh
Ah
Va
Vs
Vg
mAa
mAs
ra
gm
6.3
0.175
130
120
-2
5.2
3.5
110k
3.2
Thanks to Frank Philipse for supplying the above PDF datasheet.
Updated May 22, 2020.
shape:thin.glass.tube construction:all.glass type:pentode age:1940.1950 base:b7g heater:6.3v pins:7 pin:1.g1 pin:2.k pin:3.h pin:4.h pin:5.a pin:6.g2 pin:7.g3
