The 6021 is a special quality sub miniature double triode.

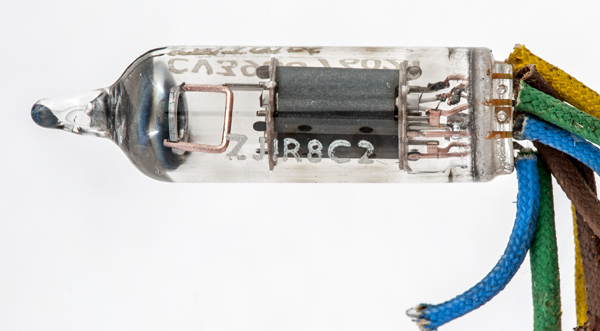

The copper loop connecting to the getter holder is attached to a tab on one triode anode.

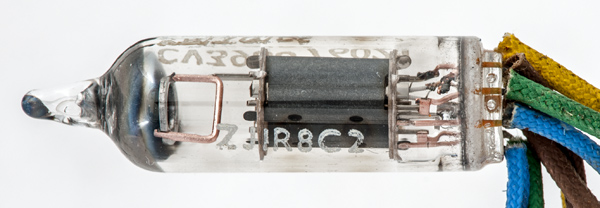

The electrodes are held in place with double mica sheets - a sign of vibration resistance.

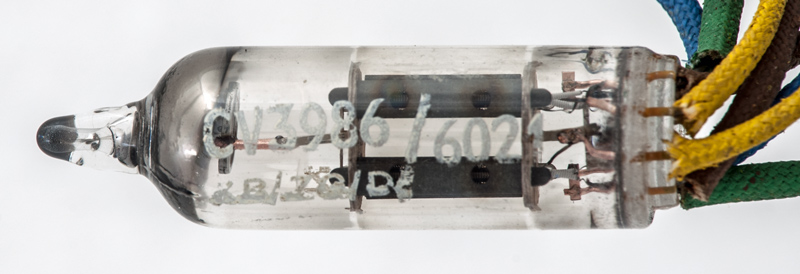

The thin glass tube envelope is 10 mm in diameter, and excluding the B8D/F base pins is 33 mm tall.
Reference: Data-sheet.



Pin Connections
1
2
3
4
5
6
7
8
a(2)
g1(2)
h
k(2)
k(1)
h
g1(1)
a(1)



Absolute Maximum Operating Conditions
Triode
Vh
Ah
Va
Vg
6.3
0.3
165
-1
Thanks to Frank Philipse for supplying the above PDF datasheet.
