VT50

Sensibly equivalent^¶ to:

CV1050 HL2K

Extras ▼

Marconi The John Lawrence Collection Other VT50 exhibits

The VT50 is a service designation for the HL2K.

See HL2K for details.

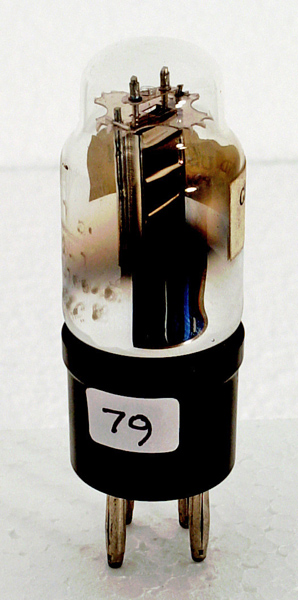

The classic envelope is 27 mm in diameter and, excluding the B4 base pins, is 70 mm tall.

References: Private communication, ³⁰⁰² & ⁴⁰⁰¹. Type VT50 was first introduced in 1934. See also 1934 adverts.

Pin Connections

B4	1	2	3	4
	a	g1	f	f

Absolute Maximum Operating Conditions^¶

Triode	Vh	Ah	Va	Vg	mAa	ra	gm	μ
	2.0	0.1	150	-3	1.75	18k	1.5

Thanks to Frank Philipse for supplying the above PDF datasheet.

Updated February 11, 2013.
