VR22

Sensibly equivalent^¶ to:

220PA AR5 AR6 CV1022 CV1166 CV1304 LP2 NR42

See also:

CV1166 short entry

Extras ▼

Cossor The John Lawrence Collection Other VR22 exhibits

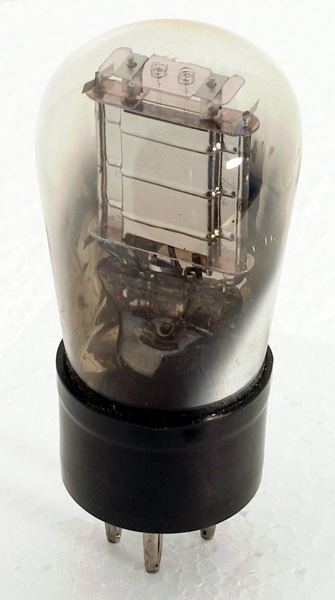

The VR22 battery triode was a popular type and had many equivalent types. The service types show that it was used by all armed services from the 1930s. As an audio output valve it produced 0.18 Watts.

Power was a wet accumulator for the filament and a dry battery for the anode supply.

The balloon envelope is 38 mm in diameter and, excluding the B4 base pins, is 80 mm tall.

References: Data-sheet & ¹⁰⁴³. Type VR22 was first introduced in 1935. See also 1935 adverts.

Pin Connections

B4	1	2	3	4
	a	g1	f	f

Absolute Maximum Operating Conditions^¶

Triode	Vh	Ah	Va	Vg	mAa	ra	gm
	2.0	0.2	150	-4.5	10.0	4000	4.0

Thanks to Frank Philipse for supplying the above PDF datasheet.

Updated April 04, 2015.
