CV276

Sensibly equivalent to:
11E2

Extras ▼

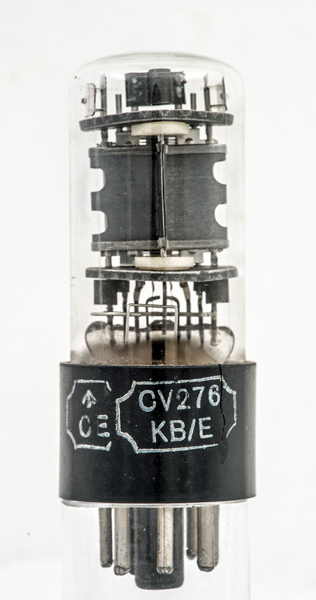

The CV276 is a transmitting tetrode and the CV specification gives use as a modulator in pulse circuits. Pulse modulation transmitters are normally found in Radar equipment.
See also 11E2 the commercial version.

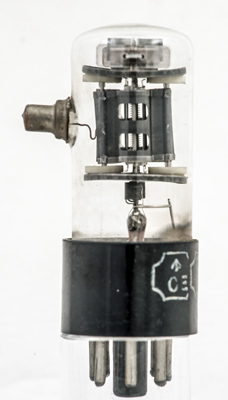

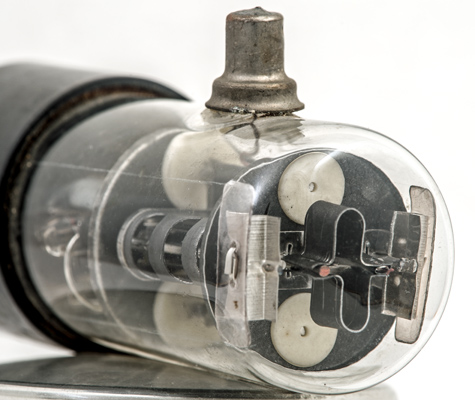

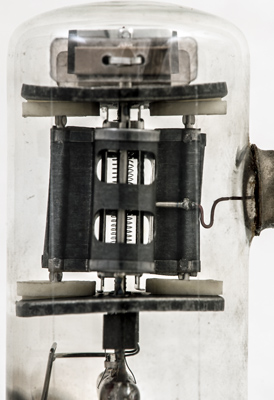

The wide glass tube envelope is 30 mm in diameter and, excluding the IO base pins, is 73 mm tall.
Reference: Datasheet.



Pin Connections
IO
1
2
3
4
5
6
7
8
tc
-
h
-
g2
g1
-
h
k
a



Absolute Maximum Operating Conditions
Beam Tetrode
Vh
Ah
gm
6.3
0.9
4.4
Thanks to Frank Philipse for supplying the above PDF datasheet.
