8012

Sensibly equivalent to:
8012A CV662 VT-228

Extras ▼



Type 8012 is a VHF/UHF transmitting triode dating from about 1942.
The control grid can pass up to 14 mA grid current and dissipate 1.6 W. The maximum frequency of operation is in the region of 500 MHz.
The anode is connected to one pair of side pins, the grid to another set of side pins.See also 8012 for more details and pictures.

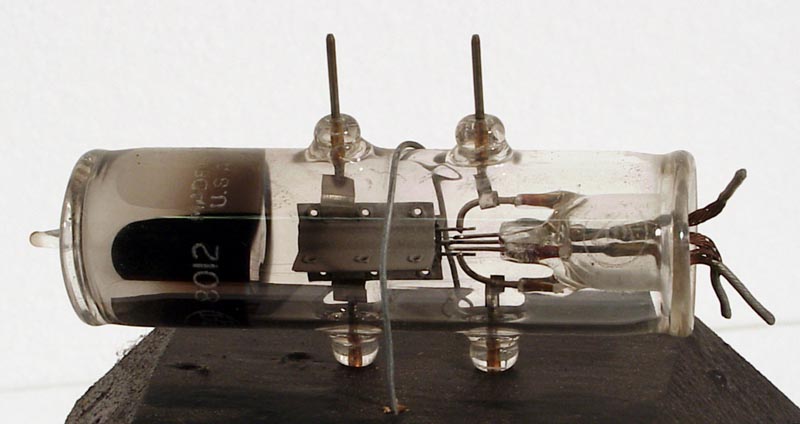

The thin glass tube envelope is 24 mm in diameter and, excluding the base pins, is 85 mm tall.
References: Datasheet & 3002. Type 8012 was first introduced in 1942.



Absolute Maximum Operating Conditions
Triode
Vh
Ah
Va
Vg
mAa
μ
Pout
6.3
1.92
1000
-90
50
18
35W
Thanks to Frank Philipse for supplying the above PDF datasheet.
Updated October 13, 2016.
