CV2549

Sensibly equivalent to:
85

Extras ▼

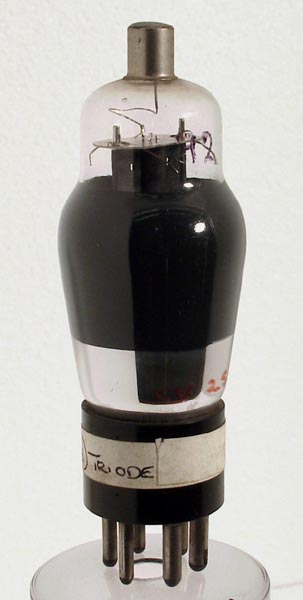

The CV2549 is a double diode triode. In radio receivers the audio and AGC detectors could share the same valve cathode as the first audio amplifier, hence the popularity of the multiple valve.
The classic envelope is 36 mm in diameter and, excluding the UX6 base pins, is 98 mm tall.
References: Data-sheet, 1040 & 1043. Type CV2549 was first introduced in 1936. See also 1936 adverts.



Pin Connections
UX6
1
2
3
4
5
6
tc
h
a
a(d2)
a(d1)
k
h
g1



Absolute Maximum Operating Conditions
Triode
Vh
Ah
Va
Vg
mAa
ra
gm
6.3
0.3
250
-20
8.0
7,500
1.1
Thanks to Frank Philipse for supplying the above PDF datasheet.
Updated October 13, 2013.
