CV4060

Sensibly equivalent to:
S11E12
See also:
Series Pass Valves

Extras ▼

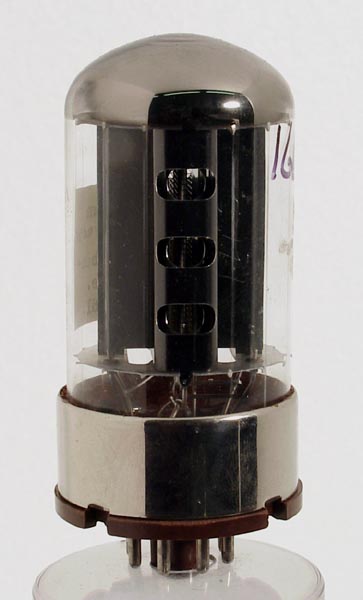

The CV4060 from AEI features a propane carbonised anode and dates from 1961. The commercial version is the S11E12. The screen grid is visible and is seen to be of wire stretched between side rods, the wire runs flat across the cathode.
This valve was a purpose built series voltage regulator and so designed for a hard service life whilst supplying a regulated voltage to other stages in professional equipment.
The wide glass tube envelope is 38 mm in diameter and, excluding the IO base pins, is 81 mm tall.
References: Datasheet. Type CV4060 was first introduced in 1959.



Pin Connections
IO
1
2
3
4
5
6
7
8
ic
h
a
g2
g1
bp
h
k



Absolute Maximum Operating Conditions
Beam Tetrode
Vh
Ah
Va
Vs
6.3
1.6
800
300
Thanks to Frank Philipse for supplying the above PDF datasheet.
Updated October 16, 2013.
Return to Main Index
