CV1207

Sensibly equivalent to:
ES450 ES50 NT19

Extras ▼

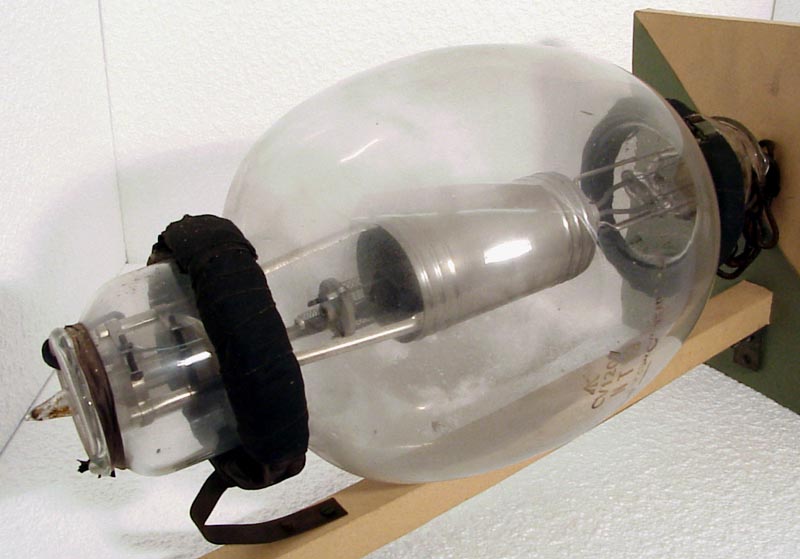

The CV1207 transmitting triode dates from 1933. The envelope also carries the designation NT19.
The valve is rated at 450 W output power, and is radiation cooled. The filament is a single thread of pure tungsten formed into an inverted 'V', and sprung loaded at the top. The grid is a wire helix and it can be seen extending beyond the enclosing anode cylinder. The anode is not substantial or blackened to assist radiating away the heat generated by the electron bombardment.
The balloon envelope is 150 mm in diameter and, excluding the base pins, is 330 mm tall.
Reference: Datasheet. Type CV1207 was first introduced in 1933.



Absolute Maximum Operating Conditions
Triode
Vh
Ah
Va
17.0
5.65
7,000
Thanks to Frank Philipse for supplying the above PDF datasheet.
Updated October 09, 2013.
