CV323

Sensibly equivalent to:
K303 KRN2

Extras ▼

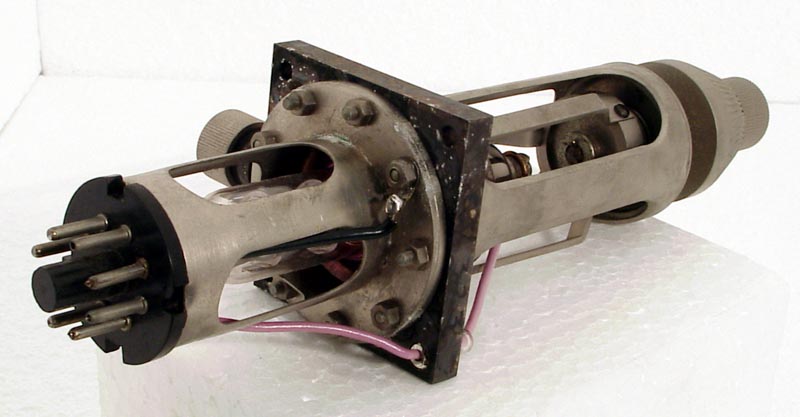

The CV323 is described as a reflex klystron with a long tuning range. The centre frequency is the 9.3 GHz radar band.
The thin glass tube envelope is 17 mm in diameter and, excluding the IO base pins, is 88 mm tall. The mounting and tuning frame is 195 x 36 mm.
Reference: Datasheet & Private communication.



Pin Connections
IO
1
2
3
4
5
6
7
8
tc
g1
h
-
-
-
-
h
k
R



Absolute Maximum Operating Conditions
Microwave Valves
Vh
Ah
4.0
1.3
Thanks to Frank Philipse for supplying the above PDF datasheet.
