CV82

Sensibly equivalent to:
3A/147J S27A

Extras ▼

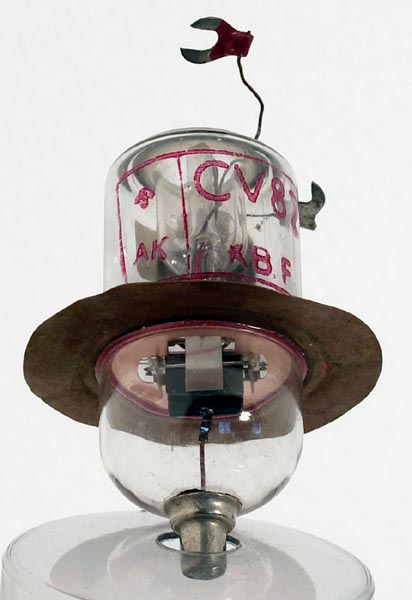

The CV82 UHF triode from the 1930s uses disc seal construction but does not then make use of a mesh grid to divide the filament from the anode. The so called lighthouse layered valves came later. The copper grid disc is 48 mm in diameter.
The CV82 specification was based on the S27A.
The wide glass tube envelope is 27 mm in diameter and, excluding the base wires, is 70 mm tall.
References: Data-sheet.



Absolute Maximum Operating Conditions
Triode
Vh
Ah
Va
mAa
Pdiss
Pout
freq
f.max
4.0
0.7
350
28
6W
1.5W
750MHz
850MHz
Thanks to Frank Philipse for supplying the above PDF datasheet.
Updated February 09, 2017.
