DK96

Sensibly equivalent^¶ to:

1AB6 1C3 X25

See also:

Pentagrid Converters - Mullard 25 mA Series Advert - 25 mA Series Valves for ABC Radios

Extras ▼

Mullard HMS Collingwood Other DK96 exhibits

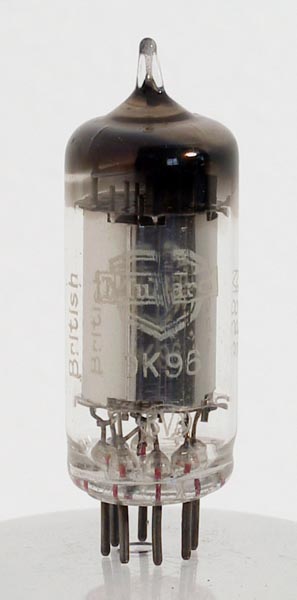

The DK96 dry battery frequency changer from Mullard is from the later range of very low filament consumption valves introduced in 1953. This example is British made. Later DK96 valves were imported. These 25 mA filament valves, introduced in the 1950s, were designed for use in battery portable domestic radio receivers. This type of radio was killed stone dead by the transistor in the early 1960s.

The thin glass tube envelope is 18 mm in diameter and, excluding the B7G base pins, is 47 mm tall.

References: Data-sheet, ¹⁰⁴⁰ & ³⁰⁰². Type DK96 was first introduced in 1953. See also 1953 adverts.

Pin Connections

B7G	1	2	3	4	5	6	7
	f-	a	g2	g1	g4	g3	f+,g5

Absolute Maximum Operating Conditions^¶

Heptode	Vh	Ah	Va	Vs	Vg	mAa	mAs	ra	gm
	1.4	0.025	85	68	0	0.6	0.14	0.8M	0.3

Thanks to Frank Philipse for supplying the above PDF datasheet.

Updated December10, 2015.
