VS70

Sensibly equivalent to:
7475 AW2 CV1070

Extras ▼

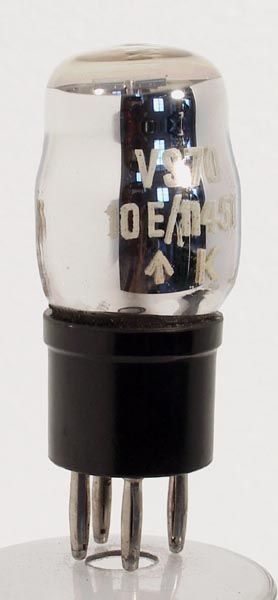

This voltage stabiliser was built for the RAF, hence the VS prefix. It dates from the 1930s.
The striking voltage 140 V and the burning current range is from 1 - 8 mA. Over this range of current the regulation is 2 Volts.
The classic envelope is 30 mm in diameter and, excluding the B4 base pins, is 64 mm tall.
Reference: Datasheet & 1040.



Pin Connections
B4
1
2
3
4
a
k
-
-



Absolute Maximum Operating Conditions
Stabiliser
Va
mAa
100
8
Thanks to Frank Philipse for supplying the above PDF datasheet.
