AW2

Sensibly equivalent to:
7475 CV1070 VS70

Extras ▼



The AW2 is a neon filled voltage stabiliser tube with good regulation.

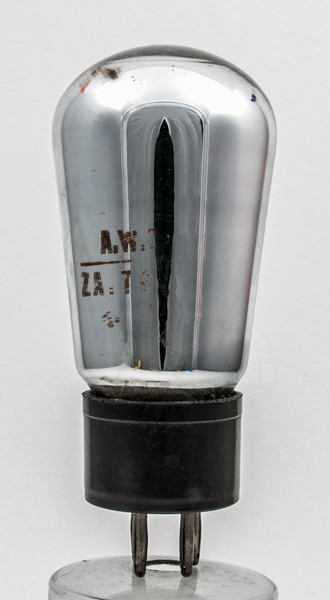

This is clearly marked AW2 but with a balloon envelope it is much larger than the equivalents.
The balloon envelope is 50 mm in diameter and, is 101 mm tall.
Reference: Datasheet.



Pin Connections
B4
1
2
3
4
a
k
-
-



Absolute Maximum Operating Conditions
Stabiliser
Va
mAa
100
1.0-8.0
Thanks to Frank Philipse for supplying the above PDF datasheet.
Updated May 29, 2014.
shape:balloon construction:pinch type:voltage.stabiliser age:1930.1940 base:b4 pins:4 pin:1.a pin:2.k pin:3.- pin:4.-
