PenDD4020


See also:
Murphy Radio

Extras ▼

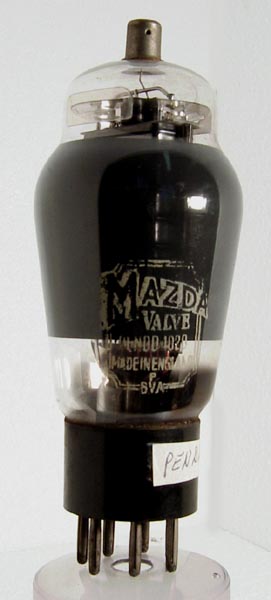

This Mazda second-generation double-diode-pentode was (we think) redesigned as a double-diode beam tetrode during the latter part of its production life. The picture shows a valve of relatively late manufacture.
The PenDD4020 had rather better gain than the Pen453DD and was correspondingly more successful, being used in a good number of AC/DC Murphy sets from around 1936 onwards. A good valve but, interestingly, its eventual end of life was often due to failure of the diode cathode emission rather than weakness in the pentode section.
The classic envelope is 51 mm in diameter and, excluding the B7 base pins, is 124 mm tall.
References: Datasheet & 1043. Type PenDD4020 was first introduced in 1935.



Pin Connections
B7
1
2
3
4
5
6
7
tc
a(d1)
a
a(d2)
h
h
k
g2
g1



Absolute Maximum Operating Conditions
Pentode
Vh
Ah
Va
Vs
Vg
mAa
mAs
gm
Pout
D
40
0.2
240
250
-7.75
43
8.5
7.8
3.9W
7%
Thanks to Frank Philipse for supplying the above PDF datasheet.
Updated December14, 2012.
