5556Sensibly equivalent¶ to:GL5556/PJ8
|
|
|

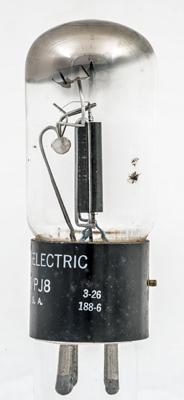

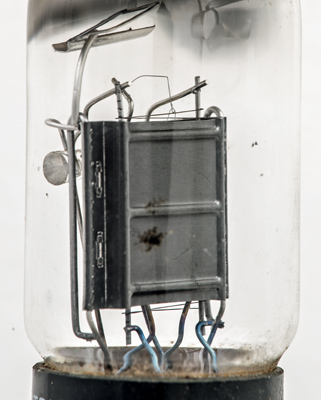

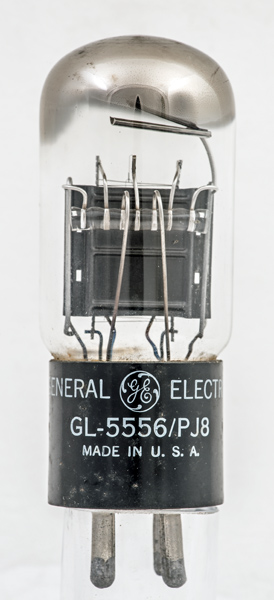

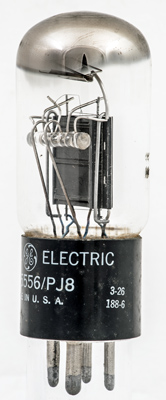

The 5556 or GL-556/PJ8 is an RF power triode with an anode dissipation of 7.5 Watts and full power rating to 6 MHz and reduced ratings up to the top of the HF band at 30 MHz.The design use is as an RF power amplifier and oscillator and alternatively as a modulator.The wide glass tube envelope is 37 mm in diameter and, excluding the UX4 base pins, is 90 mm tall.References: Data-sheet & 4038. |
Pin Connections
| 1 | 2 | 3 | 4 |  f | a | g1 | f |
|
|
Absolute Maximum Operating Conditions¶
| Vh | Ah | Va | Vg | mAa | ra | gm | μ |
| 4.5 | 1.1 | 350 | -20 | 19 | - | - | 8.5 |
|
Updated October 05, 2020.
|
|
