VR503

Sensibly equivalent to:
CV1503 KT33C

Extras ▼

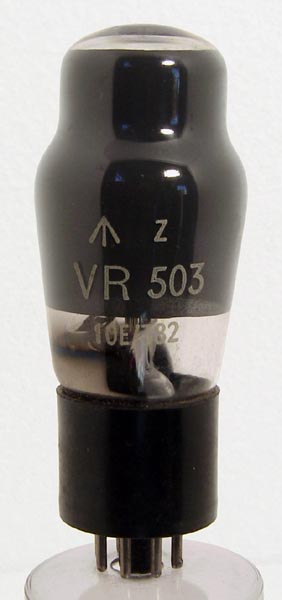

This exhibit is a pre-CV service valve. It is designated as an Air Force receiving valve and is a direct equivalent to the commercial KT33C.
The classic envelope is 42 mm in diameter and, excluding the IO base pins, is 100 mm tall.
References: Datasheet & 1043.



Pin Connections
IO
1
2
3
4
5
6
7
8
hct
h
a
g2
g1
-
h
k



Absolute Maximum Operating Conditions
Beam Tetrode
Vh
Ah
Va
Vs
Vg
mAa
mAs
gm
Pout
26
0.3
200
200
-13.2
60
10
10.0
5
Thanks to Frank Philipse for supplying the above PDF datasheet.
Updated December24, 2012.
shape:classic construction:pinch type:beam.tetrode age:1930.1940 base:io heater:300ma pins:8 pin:1.hct pin:2.h pin:3.a pin:4.g2 pin:5.g1 pin:6.- pin:7.h pin:8.k
