CV6022

Sensibly equivalent to:
8503 FX290 VX2527

Extras ▼



The CV6022 is a hydrogen Thyratron. It is designed for pulse outputs of 2 megawatts.

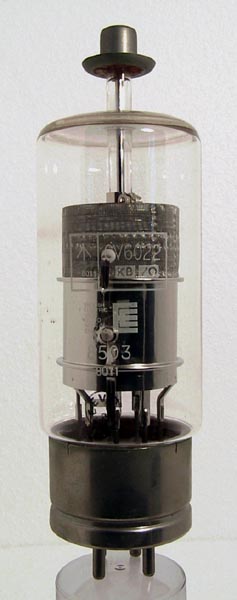

The anode is contained within the shield cylinder and metal mesh.

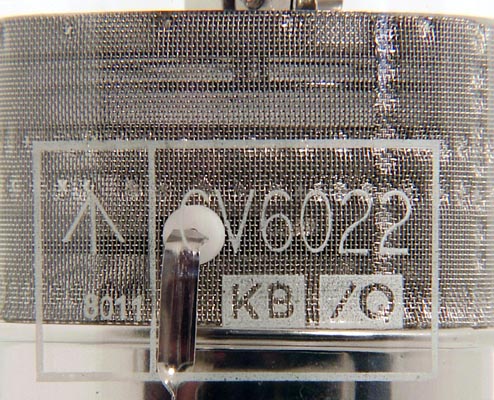

The KB/Q identifies this valve as being made to specification K1001 or K1006, the B denotes qualification by a UK authority and the Q identifies the maker as English Electric Valve Co., Chelmsford.
The wide glass tube envelope is 60 mm in diameter and, excluding the special base pins, is 193 mm tall.
Reference: Data-sheet.



Absolute Maximum Operating Conditions
The Thyratron
Vh
Ah
Va
mAa
6.3
9.6
16k
325A
Thanks to Frank Philipse for supplying the above PDF datasheet.
