CV2210

Sensibly equivalent to:
5544 MT5544 TX2-3 XR1-3200
See also:
Mullard Thyratrons Advert

Extras ▼

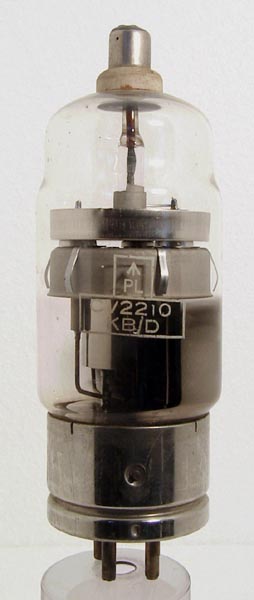

The CV2210 is a Xenon filled Thyratron with reliable operation over a wide temperature range. The design use is for speed control of DC motors. Also specified for counting and sorting devices and electronic switching machines. The prototype was the 5544.
The filament needs 60 seconds heating time. The Thyratron is a pulse device and the anode volts and current are limiting values the average current is limited to 3.2 Amps. When conducting the forward voltage drop is 16 Volts. The grid can go negative by a maximum of 250 volts. The deionisation time is 400 μ seconds.

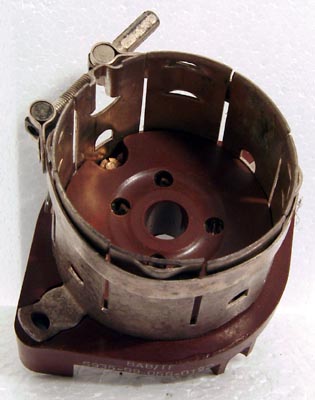

The special four pin base has a turn screw to tighten the skirt in place. The valve has a locating pip for correct insertion into the base.
The wide glass tube envelope is 60 mm in diameter and, excluding the special base pins, is 164 mm tall.
References: Datasheet. Type CV2210 was first introduced in 1952.



Pin Connections
B4D
1
2
3
4
tc
g1
f
f
-
a



Absolute Maximum Operating Conditions
Thyratron
Vh
Ah
Va
mAa
2.5
12.0
1500
40.0
Thanks to Frank Philipse for supplying the above PDF datasheet.
Updated October 12, 2013.
