12SG7

Sensibly equivalent^¶ to:

CV694 VT-209

See also:

Metal Striptease

Extras ▼

Brimar Valves collected by Norman Taylor Other 12SG7 exhibits

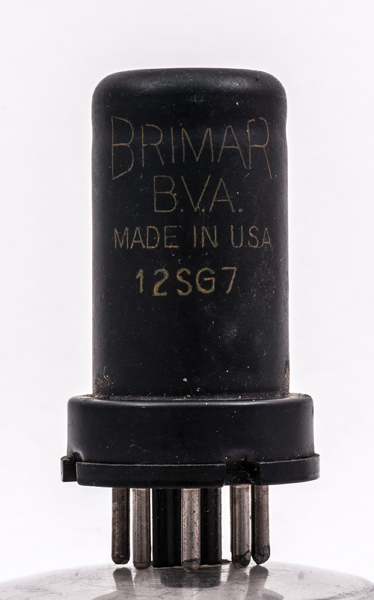

The American Government code of VT-209 is also the commercial 12SG7. It is a 12.6 Volt version of the 6SG7 semi-vari mu pentode except for the heater they are identical. Brimar are in this instance the UK distributor and not the manufacturer.

The reverse is plain paint over the steel envelope.

The thin metal tube envelope is 25 mm diameter, and excluding the IO base pins, is 52 mm tall.

References: Data-sheet, ¹⁰⁴⁰ & ¹⁰⁴³. Type 12SG7 was first introduced in 1940. See also 1940 adverts.

Pin Connections

IO	1	2	3	4	5	6	7	8
	m	h	k	g1	k	g2	h	a

Absolute Maximum Operating Conditions^¶

Pentode	Vh	Ah	Va	Vs	Vg	mAa	ra	gm
	12.6	0.15	250	150	-2.5	9.2	1M	4

Thanks to Frank Philipse for supplying the above PDF datasheet.
